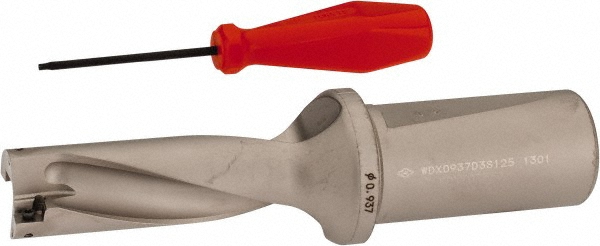

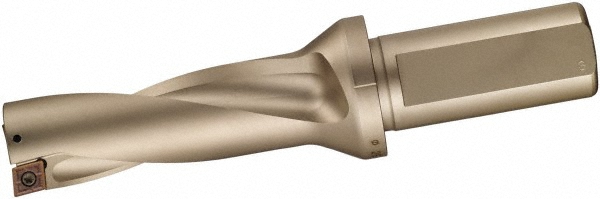

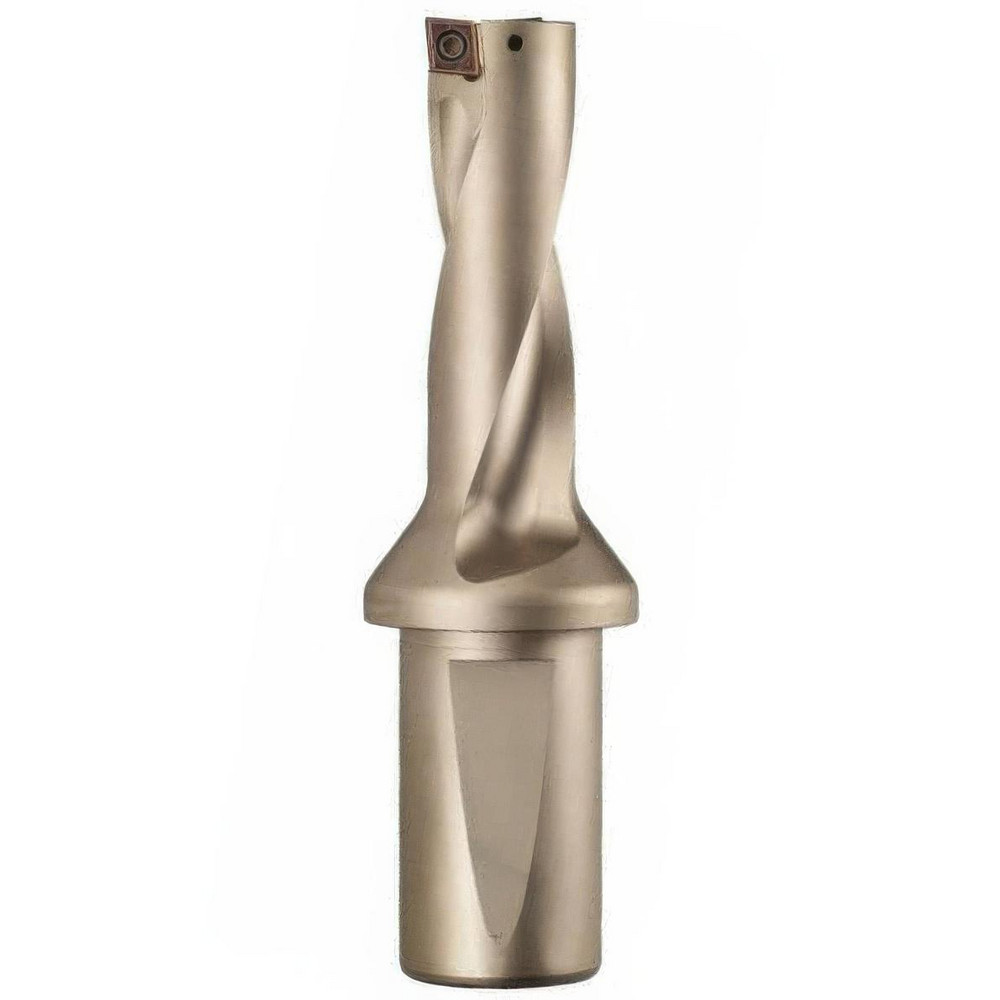

Straight-Cylindrical Shank, Uses WDXT Series WDX
| Compatible Drill Style | WDX |
|---|---|
| Maximum Drill Diameter (Inch) | 5/8 |
| Maximum Drill Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Depth (Decimal Inch) | 1.9930 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WDXT |
| Drill Depth by Diameter Ratio | 3xD |
| Series | WDX |
| Flute Length (Decimal Inch) | 1.9930 |
| Body Length (Decimal Inch) | 2.5840 |
| Shank Length (Decimal Inch) | 2.5000 |
| Neck Diameter (Inch) | 1.2600 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| UNSPSC Code | 23291503 |

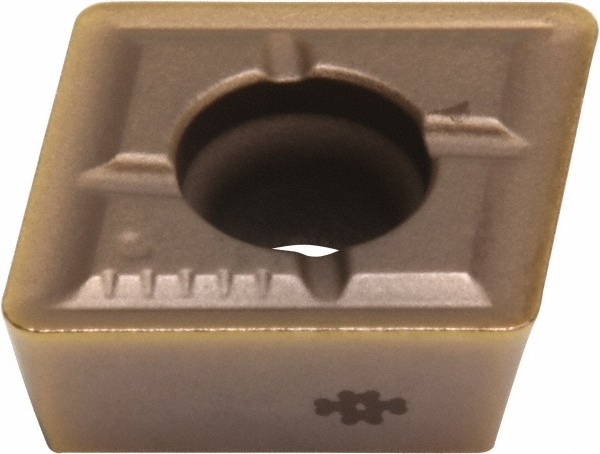

| Insert Compatibility | WDXT 052504 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 53962593 |
