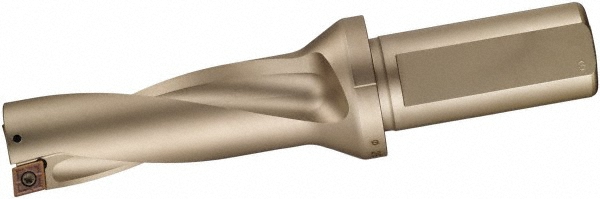

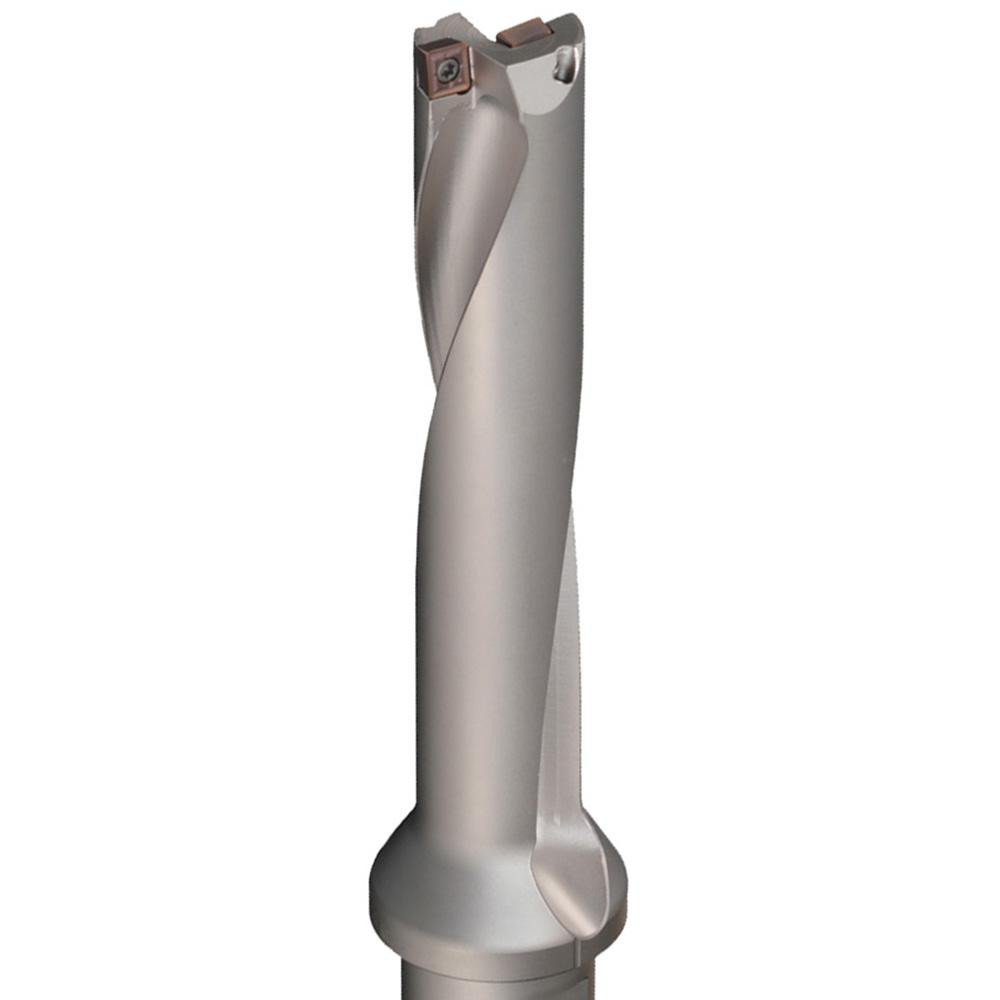

Straight-Cylindrical Shank, Uses WDXT Series WDX
| Compatible Drill Style | WDX |
|---|---|
| Maximum Drill Diameter (Inch) | 3/4 |
| Maximum Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Depth (Decimal Inch) | 3.8680 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WDXT |
| Drill Depth by Diameter Ratio | 5xD |
| Series | WDX |
| Flute Length (Decimal Inch) | 3.8680 |
| Body Length (Decimal Inch) | 4.4590 |
| Shank Length (Decimal Inch) | 2.5000 |
| Neck Diameter (Inch) | 1.2990 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WDXT 063006 |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 43395714 |
