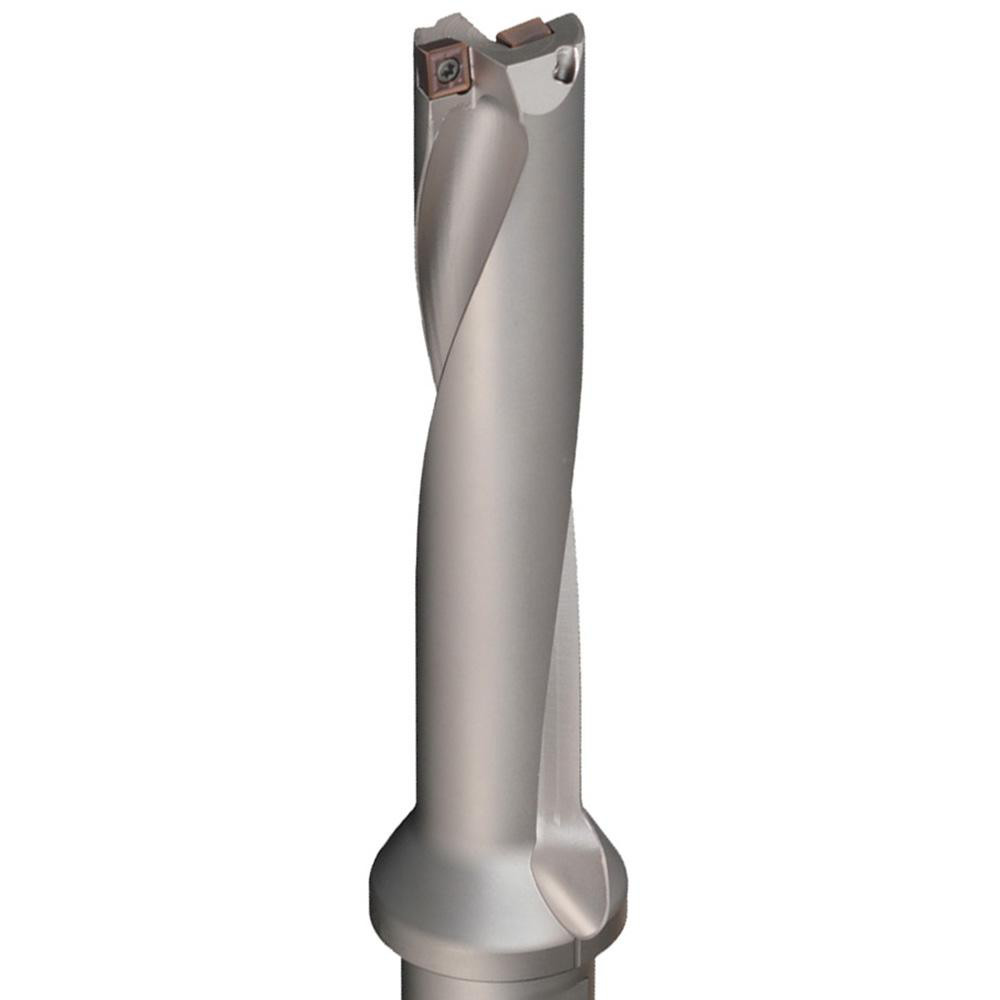

Whistle Notch Shank, Uses WDXT Series WDX
| Compatible Drill Style | WDX |
|---|---|
| Maximum Drill Diameter (Inch) | 1-1/4 |
| Maximum Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (Decimal Inch) | 3.9070 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Compatible Insert Style | WDXT |
| Drill Depth by Diameter Ratio | 3xD |
| Series | WDX |
| Flute Length (Decimal Inch) | 3.9070 |
| Body Length (Decimal Inch) | 4.7340 |
| Shank Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Inch) | 1.9680 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3780x0.1575 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WDXT 094008 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 65327587 |
