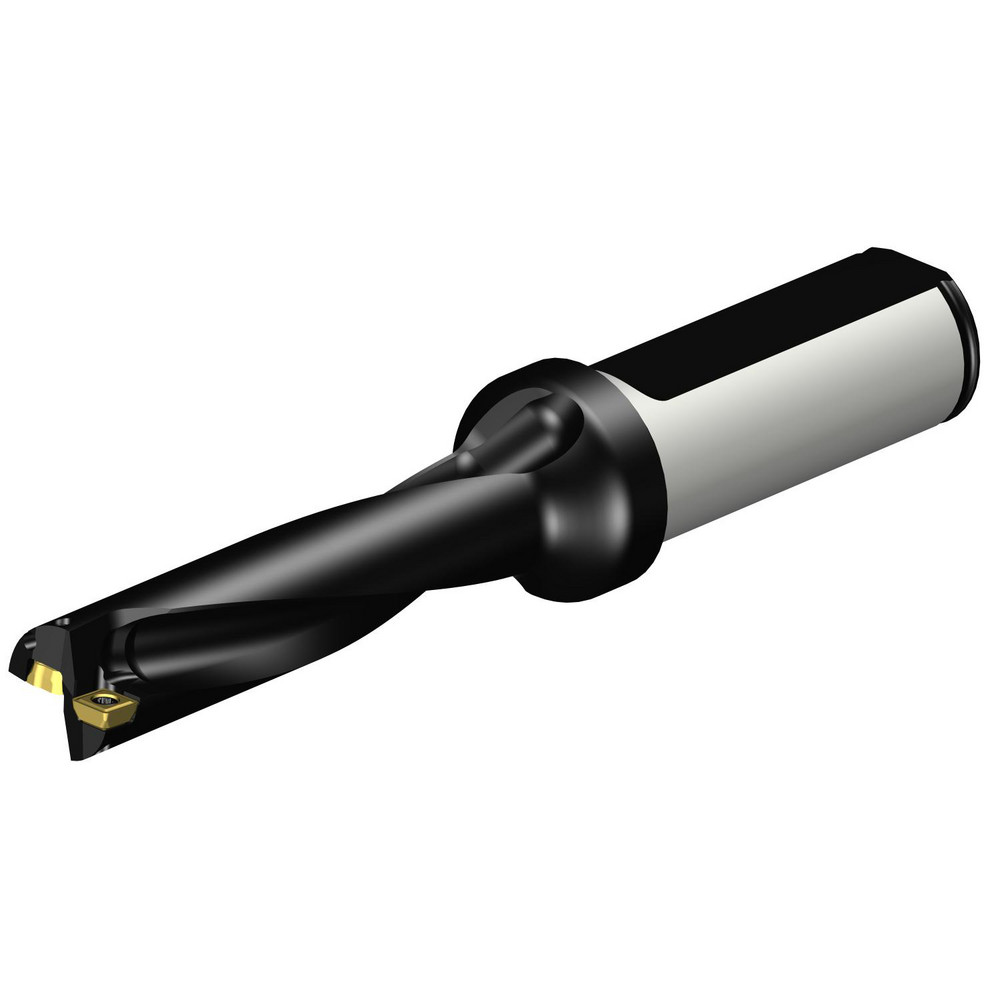

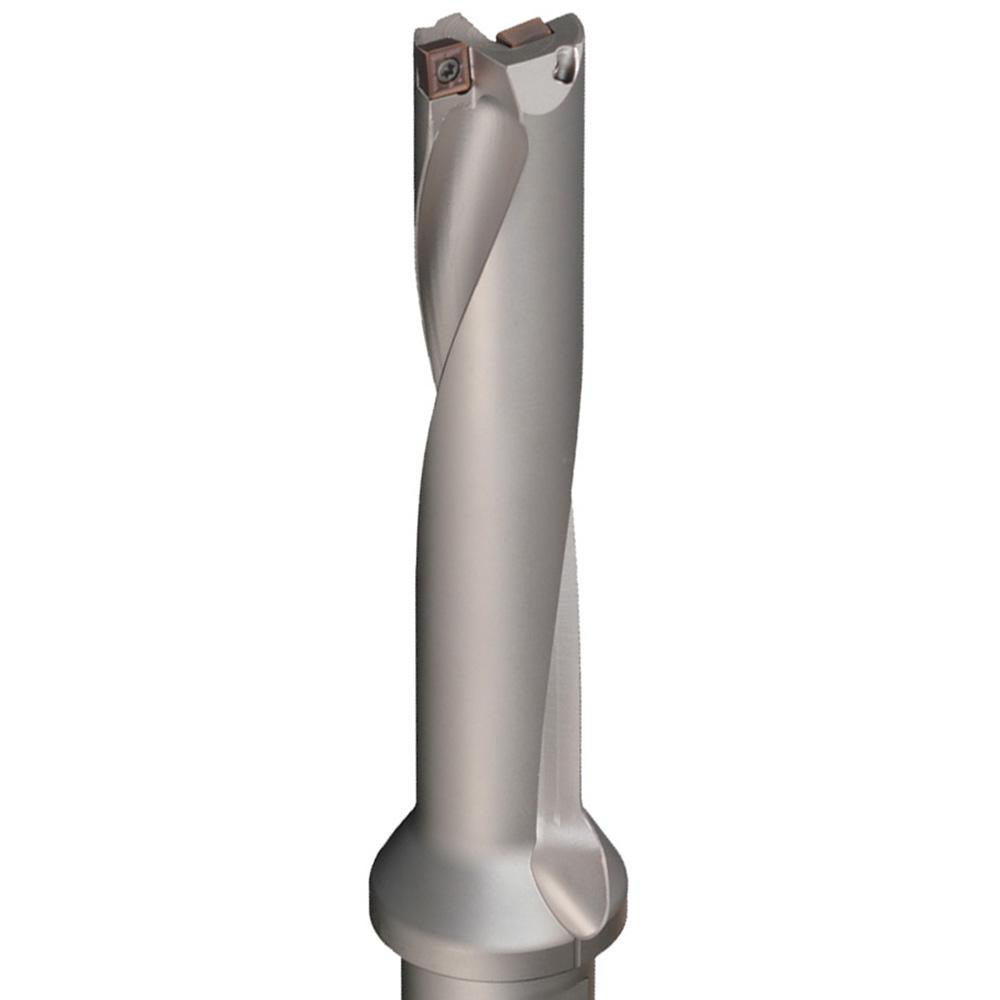

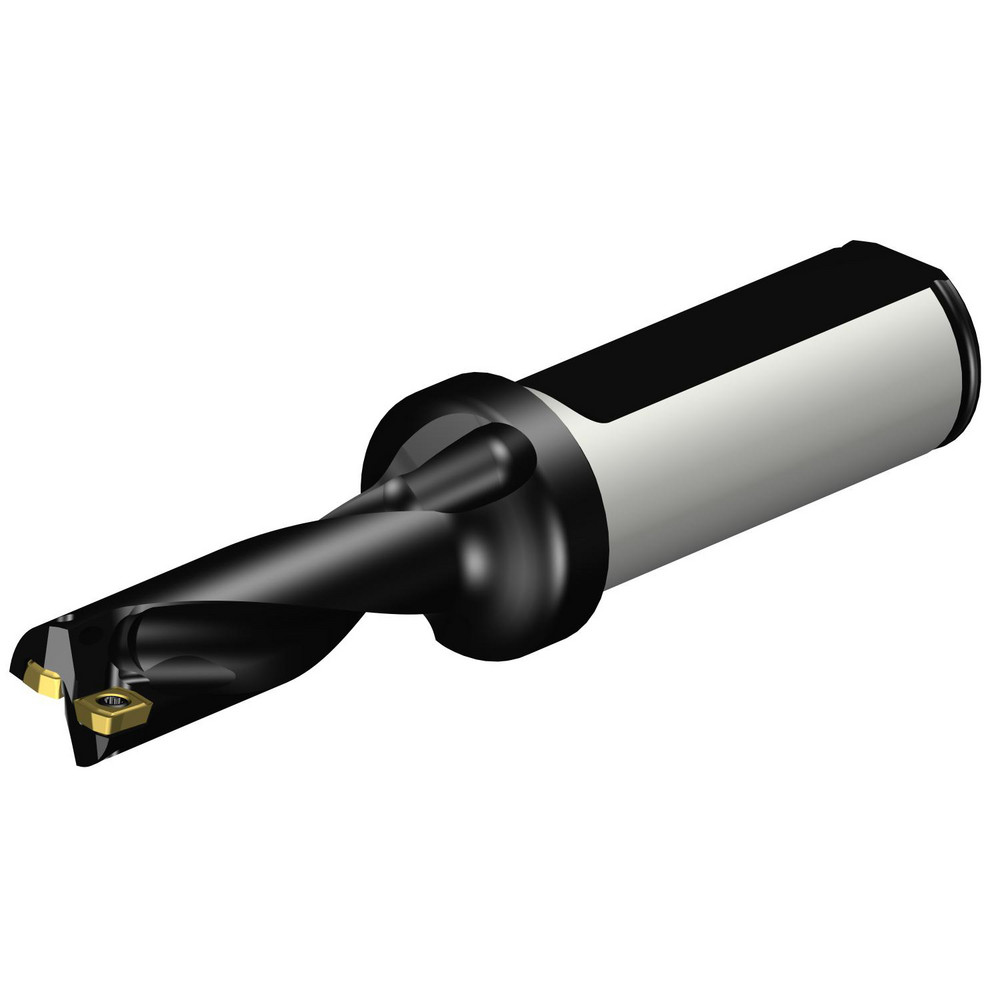

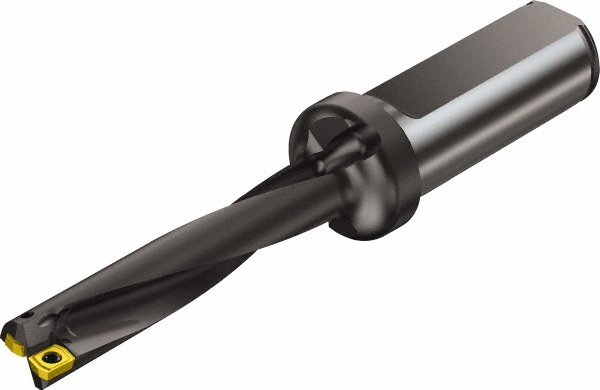

Straight-Cylindrical Shank, Uses WDXT Series WDX
| Compatible Drill Style | WDX |
|---|---|
| Maximum Drill Diameter (mm) | 13.00 |
| Maximum Drill Depth (Decimal Inch) | 2.6772 |
| Maximum Drill Depth (mm) | 68.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | WDXT |
| Drill Depth by Diameter Ratio | 5xD |
| Series | WDX |
| Flute Length (Decimal Inch) | 2.6772 |
| Flute Length (mm) | 68.00 |
| Body Length (mm) | 83.00 |
| Body Length (Decimal Inch) | 3.2677 |
| Shank Length (Decimal Inch) | 1.7323 |
| Shank Length (mm) | 44.00 |
| Neck Diameter (mm) | 28.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WDXT 042004 |
| Collar Diameter (Decimal Inch) | 1.1024 |
| Collar Diameter (mm) | 28.00 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 65929952 |
