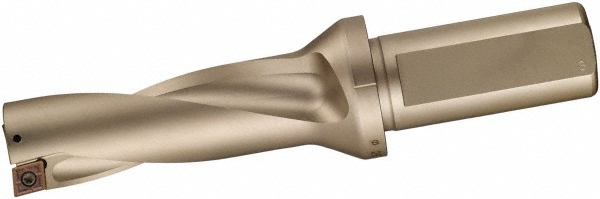

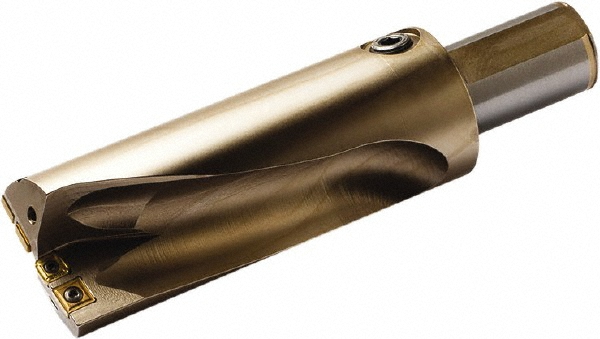

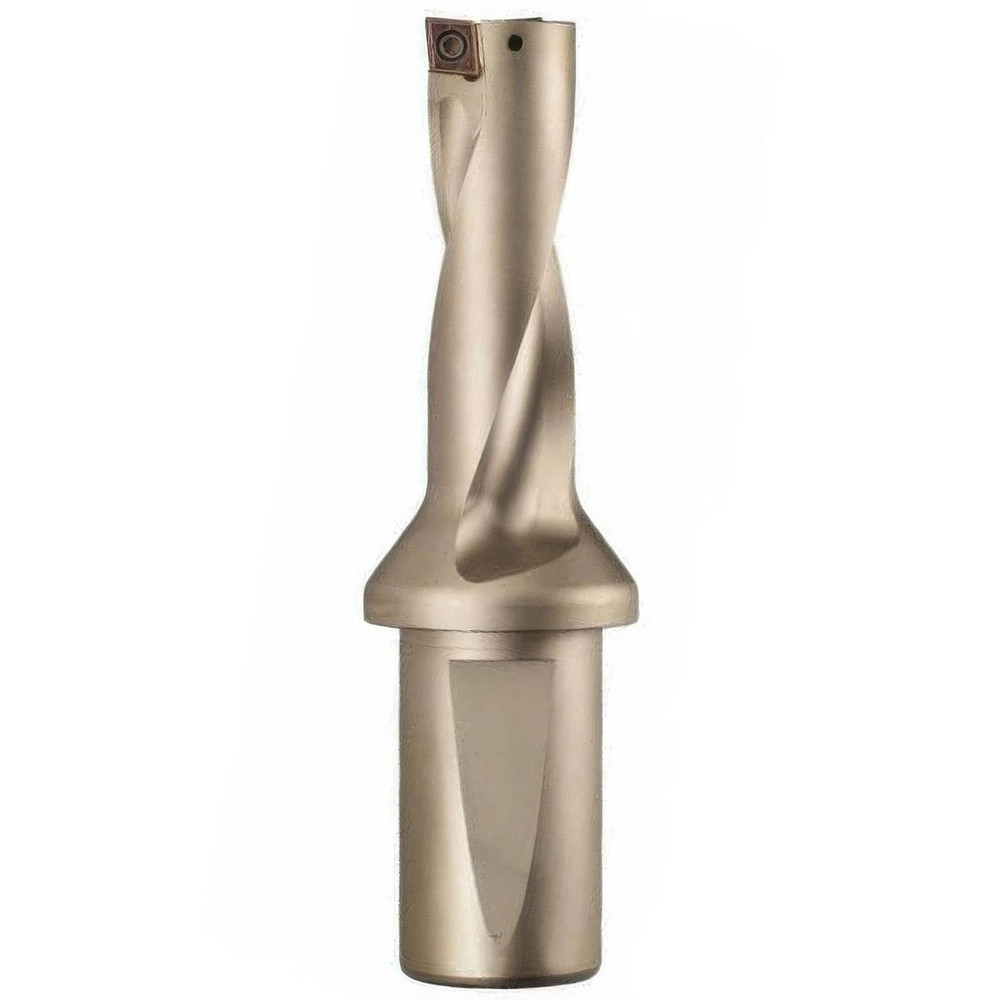

Whistle Notch Shank, Uses WDXT Series SumiDrill
| Compatible Drill Style | WDX |
|---|---|
| Maximum Drill Diameter (Inch) | 2-1/2 |
| Maximum Drill Diameter (Decimal Inch) | 2.5000 |
| Maximum Drill Depth (Decimal Inch) | 7.8150 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WDXT |
| Drill Depth by Diameter Ratio | 3xD |
| Series | SumiDrill |
| Flute Length (Decimal Inch) | 7.8150 |
| Body Length (Decimal Inch) | 9.0750 |
| Shank Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Inch) | 2.4210 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WDXT 186012 |
| Collar Diameter (Decimal Inch) | 2.4210 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 77912186 |
