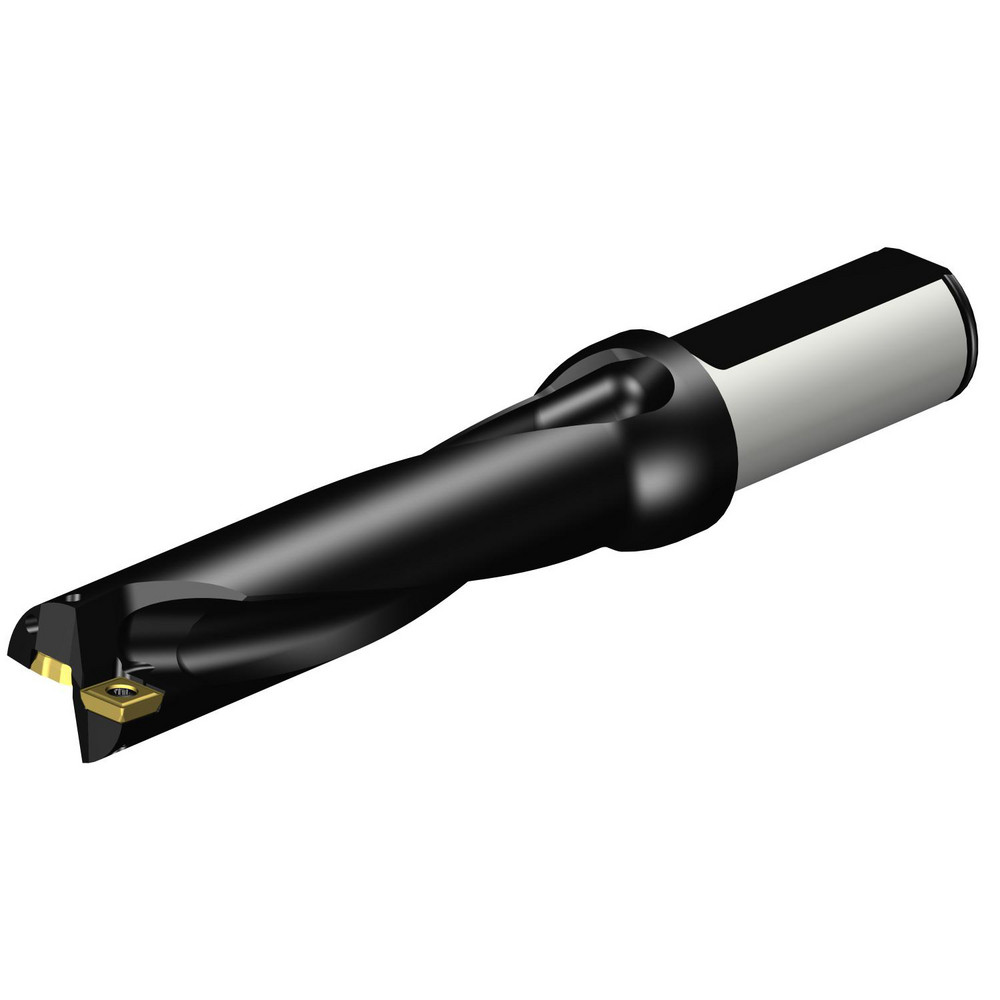

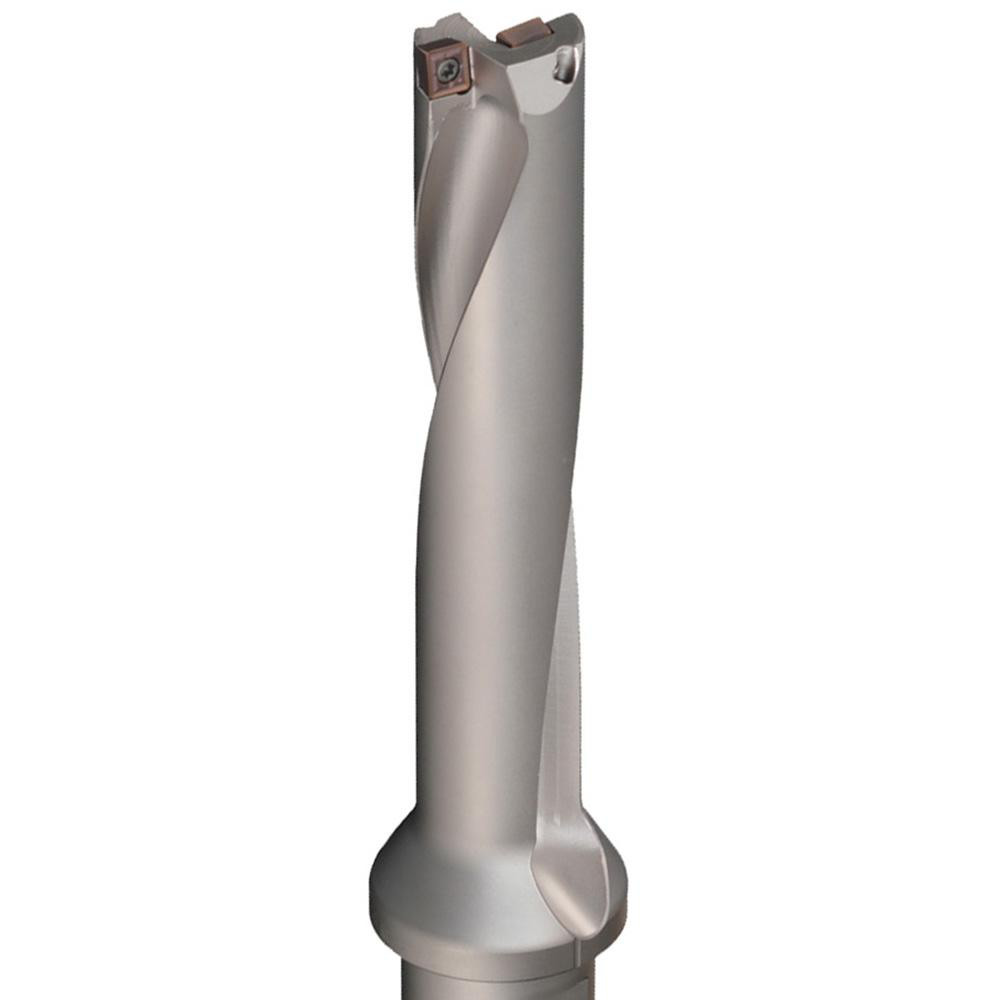

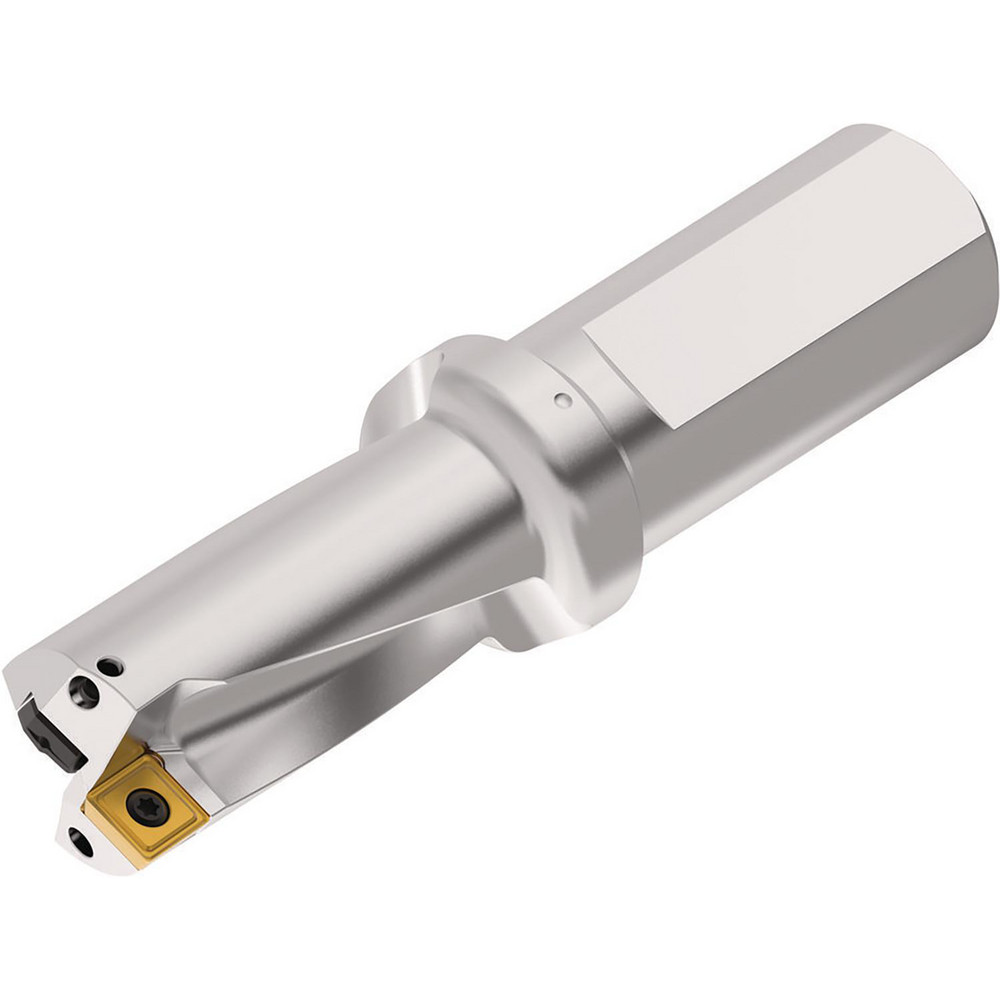

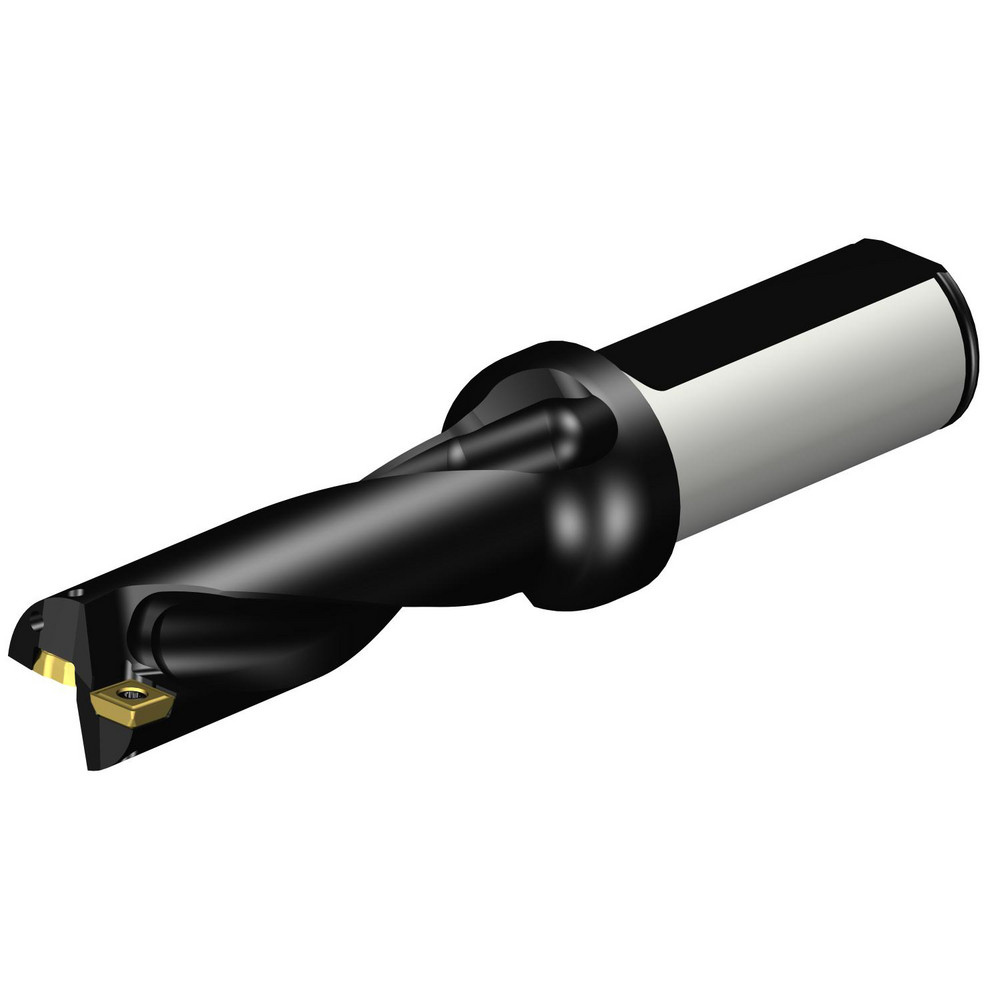

Straight-Cylindrical Shank, Uses WDXT Series WDX
| Compatible Drill Style | WDX |
|---|---|
| Maximum Drill Diameter (mm) | 25.00 |
| Maximum Drill Depth (Decimal Inch) | 2.0866 |
| Maximum Drill Depth (mm) | 53.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | WDXT |
| Drill Depth by Diameter Ratio | 2xD |
| Series | WDX |
| Flute Length (Decimal Inch) | 2.0866 |
| Flute Length (mm) | 53.00 |
| Body Length (mm) | 71.00 |
| Body Length (Decimal Inch) | 2.7953 |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.00 |
| Neck Diameter (mm) | 37.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| UNSPSC Code | 23291503 |
| Insert Compatibility | WDXT 073506 |
| Collar Diameter (Decimal Inch) | 1.4567 |
| Collar Diameter (mm) | 37.00 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 65327777 |
