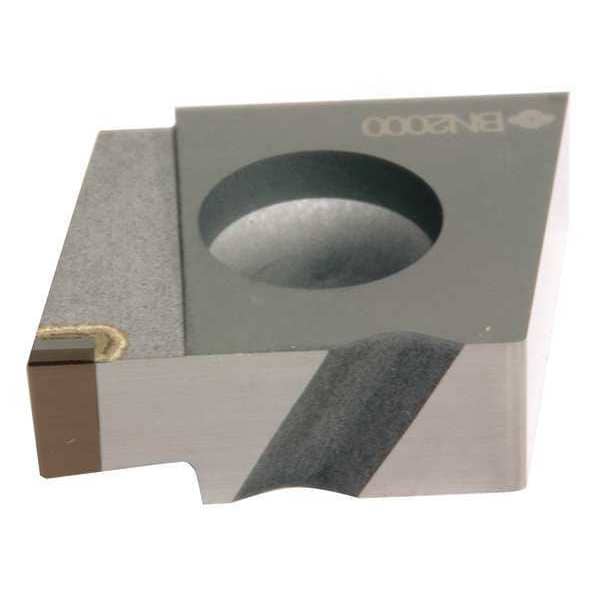

Parting and Grooving Insert, Diamond, 5, CGA, .5, CBN
| Item | Parting and Grooving Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CGA |
| Inscribed Circle | 5 |
| Insert Size | 1,504,400 |
| Grade | BN2000 |
| Corner Radius | .5 |
| Insert Material | CBN |
| Insert Application | Medium |
| Rake | 0 deg |
| ISO Number | CGAL1504400 |
| No. of Edges | 1 |
| For Use With | Toolholders, Boring Bars |
| Mounting Hole Dia. | 5/8 in |
| Cutting Direction | Left Hand |
| Cast Iron (K) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Stainless (M) Compatibility | No |
| Nose Radius | 0.0078 in |
| Mounting Style | Screw-On |
| ANSI Number | CGAL1504400-BN2000 |
| Hardened (H) Compatibility | Yes |
| Coating | CVD |
| Workpiece Compatibility | Cast Iron (K), Hardened (H), Steel (P), Super Alloy (S) |
| Steel (P) Compatibility | Yes |
| Number of Cutting Edges | 1 |
| Primary Material Application | Hardened Steel |
| Primary Material Application ISO Code | H |
| Thickness | 3 |
| Manufacturer Grade | BN2000 |
| Measurement System | Fractional Inch |
| Depth of Cut | 0.1969 in |
| ANSI Code | CGAL1504400 |
| Material - Machining | CBN |
| Cutting Application | Grooving |
| Insert Holding Type | Screw |
| Material | CBN |
| Style | CGAL |
| For Toolholder | GWB Grooving Toolholders |
| Application | Medium |
| Package Quantity | 1 |
