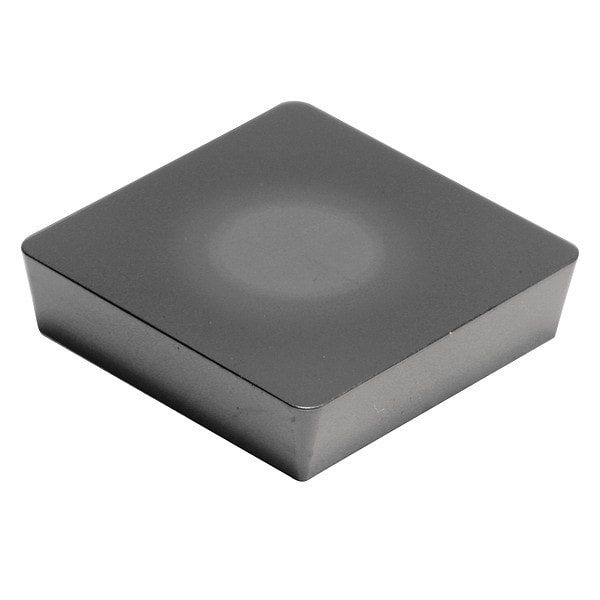

Square Turning Insert, Square, 2, SPG, 2, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SPG |
| Inscribed Circle | 2 |
| Insert Size | 322 |
| Chip-Breaker | No |
| Grade | AC5025S |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | SPGN090308 |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Coating | PVD |
| ANSI Number | SPG322 |
| No. of Edges | 4 |
| Nose Radius | 0.031 in |
| Super Alloy (S) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Non Ferrous (N) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Relief Angle | 11 Degrees |
| Mounting Hole Dia. | 0.15 in |
| Mounting Style | Clamp |
| Insert Thickness | 0.187 |
| Primary Material Application | Titanium, Nickel |
| Features | Fracture Resistant |
| Shape | Square |
| Number of Cutting Edges | 4 |
| ANSI Code | SPG322-AC5025S |
| Cutting Application | Turning |
| Thickness | 1/8 in |
| Finish - Machining | AlTiSiN |
| Measurement System | Fractional Inch |
| Manufacturer Grade | AC5025S |
| Clearance Angle | 11 deg |
| Primary Material Application ISO Code | S10 - S30 |
| Insert Holding Type | No Screw Hole |
| Material - Machining | Carbide |
| Included Angle | 90 Degrees |
| Coating Process | PVD |
| Material | Carbide |
| Package Quantity | 1 |
