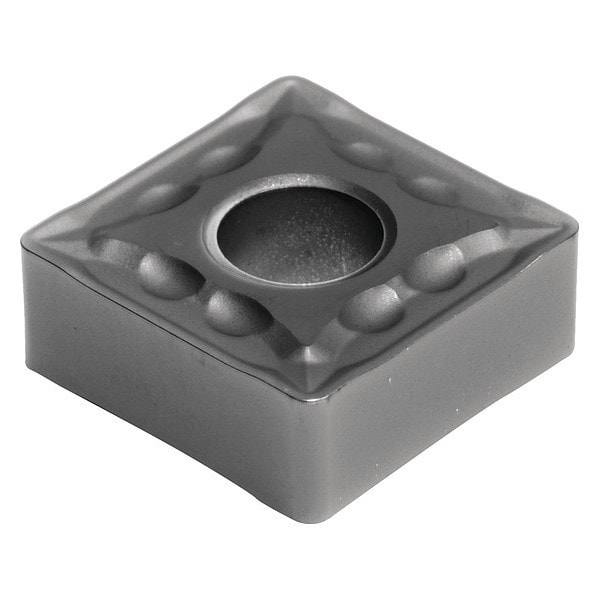

Square Turning Insert, Square, 4, SNMG, 3
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SNMG |
| Inscribed Circle | 4 |
| Chip-Breaker | Yes |
| Corner Radius | 3 |
| Rake | 0 deg |
| ISO Number | SNMG120412N-MU |
| Cutting Direction | Neutral |
| Primary Material Application ISO Code | S10 - S30 |
| Features | Fracture Resistant |
| Cutting Application | Turning |
| Chip-Breaker Style | Double Sided |
| ANSI Code | SNMG433EMU-AC5025S |
| Chip-Breaker Code | EMU |
| Clearance Angle | 0 deg |
| Manufacturer Grade | AC5025S |
| Insert Holding Type | Straight Hole |
| Shape | Square |
| Number of Cutting Edges | 8 |
| Coating Process | PVD |
| Material - Machining | Carbide |
| Primary Material Application | Titanium, Nickel |
| Finish - Machining | AlTiSiN |
| Included Angle | 90 Degrees |
| Thickness | 3/16 in |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
