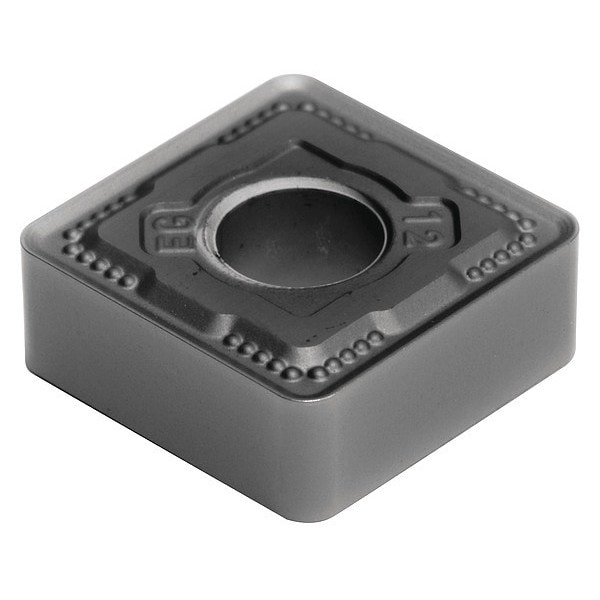

Square Turning Insert, Square, 5, SNMG, 3, Carbide
| Item | Square Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SNMG |
| Inscribed Circle | 5 |
| Insert Size | 543 |
| Chip-Breaker | Yes |
| Grade | AC5025S |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Semi-Finishing |
| Rake | Negative |
| ISO Number | SNMG150612N-EG |
| ANSI Number | SNMG543EEG |
| Super Alloy (S) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Mounting Style | Screw |
| Insert Thickness | 1/4 in |
| Coating | PVD |
| Non Ferrous (N) Compatibility | Yes |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Nose Radius | 0.046 in |
| Relief Angle | 0 Degrees |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Mounting Hole Dia. | 1/4 in |
| No. of Edges | 8 |
| Features | Fracture Resistant |
| Chip-Breaker Style | Double Sided |
| Number of Cutting Edges | 8 |
| Manufacturer Grade | AC5025S |
| Chip-Breaker Code | EEG |
| Primary Material Application ISO Code | S10 - S30 |
| Insert Holding Type | Straight Hole |
| Primary Material Application | Titanium, Nickel |
| Clearance Angle | 0 deg |
| Measurement System | Fractional Inch |
| ANSI Code | SNMG543EEG-AC5025S |
| Material - Machining | Carbide |
| Shape | Square |
| Coating Process | PVD |
| Thickness | 1/4 in |
| Included Angle | 90 Degrees |
| Finish - Machining | AlTiSiN |
| Cutting Application | Turning |
| Material | Carbide |
| Package Quantity | 1 |
