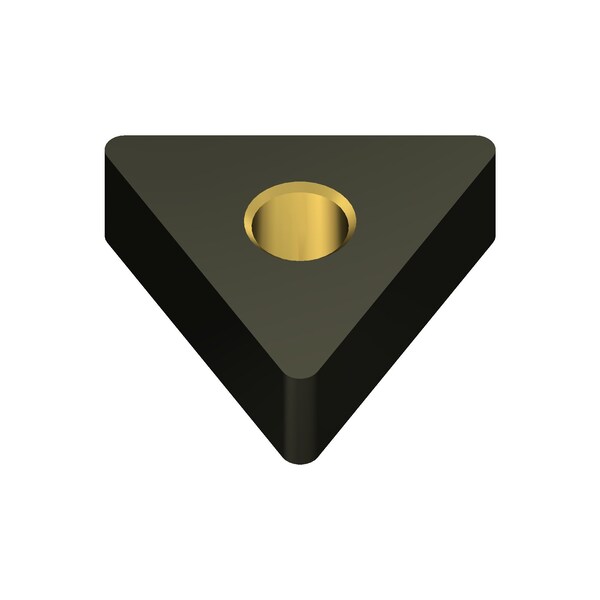

TNMA333 Grade AC420K Carbide Turning Insert
| Insert Style | TNMA |
|---|---|
| Inscribed Circle | 3/8 in |
| Insert Material | Carbide |
| Insert Application | K15, K20 |
| Rake | Negative |
| Relief Angle | 0 Degree |
| Insert Thickness | 0.1874 in |
| Workpiece Material | Cast Iron |
| Nose Radius | 0.0472 in |
| Mounting Hole Dia. | 3.81 mm |
| Coating | Super FF coat |
| Corner Angle | 60 |
| Insert Holding Method | Clamp, Pin |
| Tolerance Class | M |
| Series | AC420K |
| Cutting Edge Length | 0.6496 in |
| Package Quantity | 1 |
