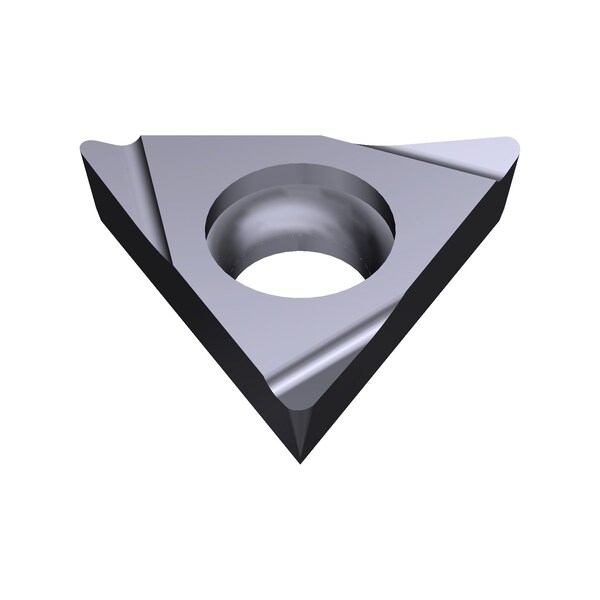

TPGT1.81.50.5 RFY Grade AC5015S Carbide Turning Insert
| Insert Style | TPGT |
|---|---|
| Inscribed Circle | 0.2189 in |
| Chip-Breaker | RFY |
| Insert Material | Carbide |
| Insert Application | S10, S15, S20 |
| Rake | Positive |
| Coating | Absotech |
| Relief Angle | 11 Degree |
| Insert Thickness | 0.0937 in |
| Nose Radius | 0.0079 in |
| Mounting Hole Dia. | 2.8 mm |
| Workpiece Material | Alloy |
| Insert Holding Method | Screw-On |
| Corner Angle | 60 |
| Cutting Edge Length | 0.378 in |
| Tolerance Class | G |
| Series | AC5000S |
| Package Quantity | 1 |
