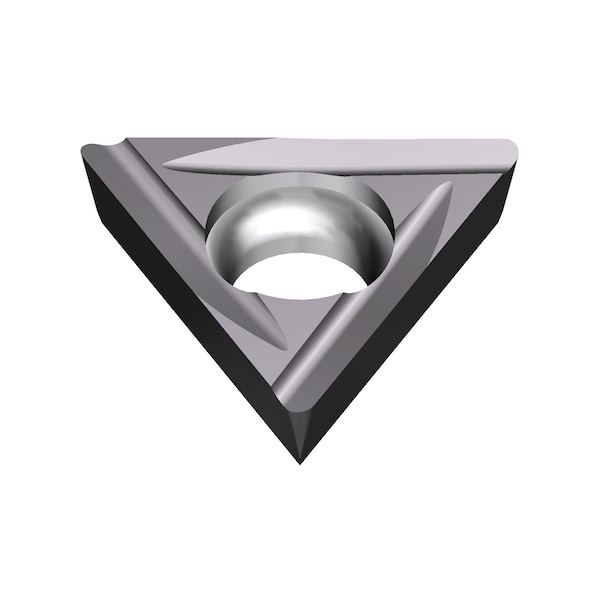

TPGT322RFX Grade AC1030U Carbide Turning Insert
| Insert Style | TPGT |
|---|---|
| Inscribed Circle | 3/8 in |
| Chip-Breaker | RFX |
| Insert Material | Carbide |
| Insert Application | M10, P10 |
| Rake | Positive |
| Coating | Absotech |
| Workpiece Material | Small Machining, Steel, Stainless Steel |
| Nose Radius | 0.0315 in |
| Mounting Hole Dia. | 4.4 mm |
| Relief Angle | 11 Degree |
| Insert Thickness | 0.1252 in |
| Tolerance Class | G |
| Insert Holding Method | Screw-On |
| Series | AC1030U |
| Corner Angle | 60 |
| Cutting Edge Length | 0.6496 in |
| Package Quantity | 1 |
