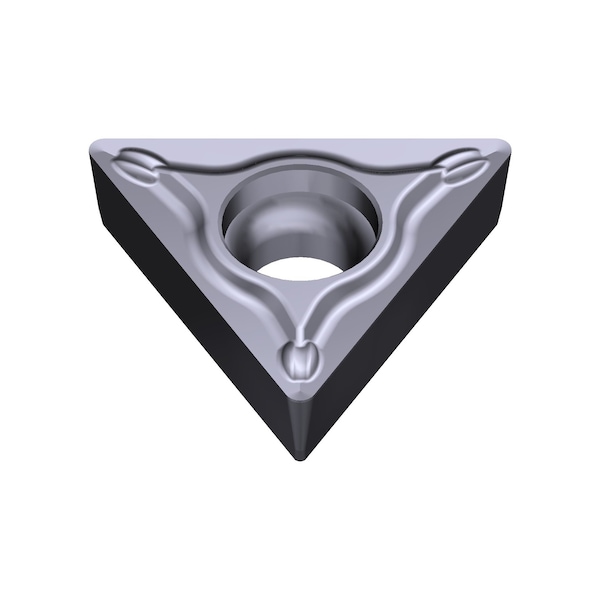

TPMT220.5ESU Grade AC5005S Carbide Turning Insert
| Insert Style | TPMT |
|---|---|
| Inscribed Circle | 1/4 in |
| Chip-Breaker | ESU |
| Insert Material | Carbide |
| Insert Application | S05 |
| Rake | Positive |
| Relief Angle | 11 Degree |
| Insert Thickness | 0.1252 in |
| Coating | Absotech |
| Mounting Hole Dia. | 3.4 mm |
| Workpiece Material | Alloy |
| Nose Radius | 0.0079 in |
| Series | AC5000S |
| Cutting Edge Length | 0.4331 in |
| Corner Angle | 60 |
| Tolerance Class | M |
| Insert Holding Method | Screw-On |
| Package Quantity | 1 |
