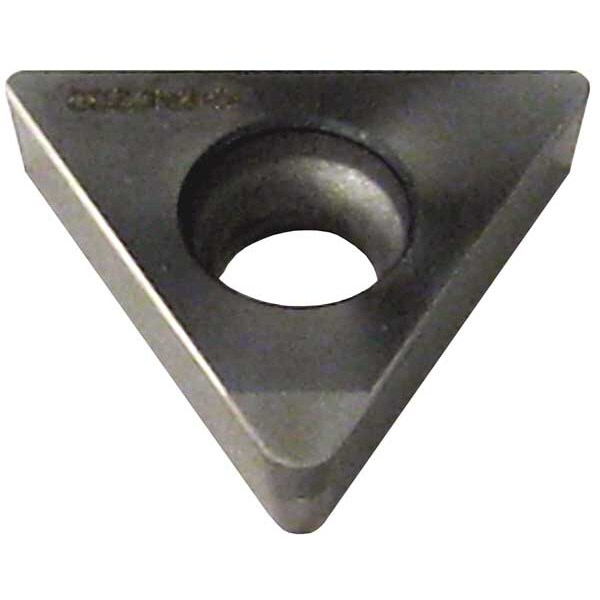

Triangle Turning Insert, Triangle, 2, TCGA, 1, CBN
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCGA |
| Inscribed Circle | 2 |
| Insert Size | 21.51 |
| Chip-Breaker | No |
| Grade | BNC200 |
| Corner Radius | 1 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | NC-TCGW110204 |
| ANSI Number | NCTCGA21.51-BNC200 |
| Relief Angle | 7 Degrees |
| Hardened (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Hardened (H), Steel (P) |
| Non Ferrous (N) Compatibility | No |
| Insert Thickness | 0.094 in |
| Cast Iron (K) Compatibility | Yes |
| For Use With | STAC Toolholders, A-STFC, D-STUC Boring Bars |
| Steel (P) Compatibility | Yes |
| Mounting Hole Dia. | 0.110 |
| Stainless (M) Compatibility | No |
| Coating | TiAlN |
| Mounting Style | Screw-On |
| Cutting Direction | Neutral |
| Nose Radius | 0.0157 in |
| No. of Edges | 1 |
| Through Hole Inside Dia. | 0.11 in |
| Clearance Angle | 7 deg |
| Insert Holding Type | Straight Hole |
| ANSI Code | NC-TCGA21.51 |
| Features | Wear Resistant |
| Primary Material Application ISO Code | H |
| Thickness | 0.0937 in |
| Primary Material Application | Hardened Steel |
| Included Angle | 60 Degrees |
| Measurement System | Fractional Inch |
| Finish - Machining | TiN |
| Material - Machining | CBN |
| Manufacturer Grade | BNC200 |
| Cutting Application | Turning |
| Depth of Cut | 0.0150 in |
| Cutting Material Coverage | Mini Tip |
| Shape | Triangle |
| Material | CBN |
| Package Quantity | 1 |
