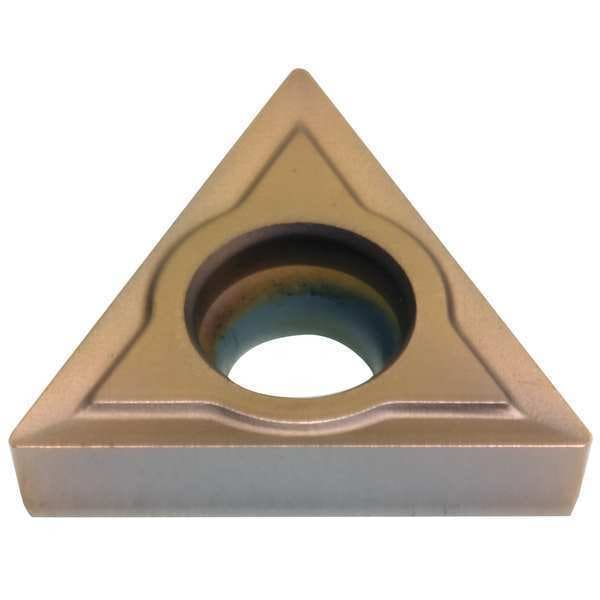

Triangle Turning Insert, Triangle, 2, TCGT, .5, Cermet
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCGT |
| Inscribed Circle | 2 |
| Insert Size | 21.50.5 |
| Chip-Breaker | Yes |
| Grade | T1500Z |
| Corner Radius | .5 |
| Insert Material | Cermet |
| Insert Application | Finishing |
| Rake | 6 deg |
| ISO Number | TCGT110202MN-SC |
| Super Alloy (S) Compatibility | No |
| Mounting Style | Screw-On |
| Steel (P) Compatibility | Yes |
| Coating | CBN |
| Insert Thickness | 0.094 in |
| For Use With | Toolholders, Boring Bars |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Mounting Hole Dia. | 0.11 in |
| ANSI Number | TCGT21.50.5MEFM-T1500Z |
| Nose Radius | 0.0078 in |
| Cast Iron (K) Compatibility | No |
| Hardened (H) Compatibility | No |
| No. of Edges | 3 |
| Cutting Direction | Neutral |
| Stainless (M) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Included Angle | 60 Degrees |
| Insert Holding Type | Countersink Hole |
| Number of Cutting Edges | 3 |
| Manufacturer Grade | T1500Z |
| Shape | Triangle |
| Features | Excellent Wear Resistance |
| ANSI Code | TCGT21.50.5MEFM |
| Through Hole Inside Dia. | 0.11 in |
| Cutting Application | Turning |
| Material - Machining | Cermet |
| Chip-Breaker Style | On One Side |
| Chip-Breaker Code | MEFM |
| Clearance Angle | 7 deg |
| Primary Material Application ISO Code | P |
| Thickness | 0.0937 in |
| Measurement System | Fractional Inch |
| Primary Material Application | Steel |
| Coating Process | PVD |
| Material | Cermet |
| Package Quantity | 1 |
