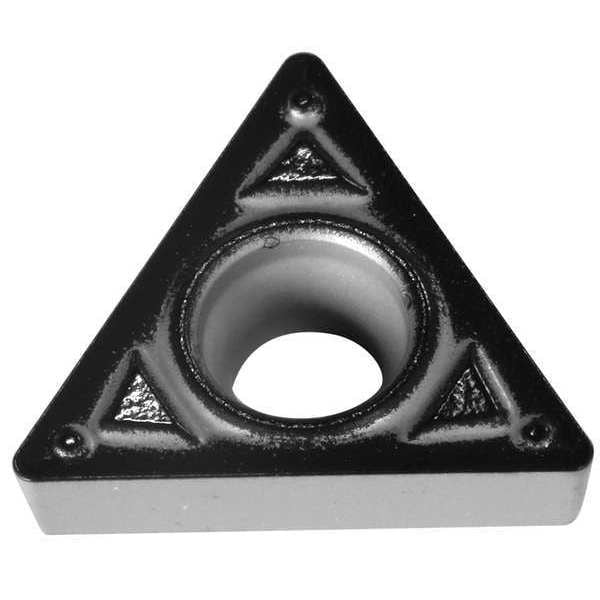

Triangle Turning Insert, Triangle, 2, TCMT, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCMT |
| Inscribed Circle | 2 |
| Insert Size | 21.51 |
| Chip-Breaker | Yes |
| Grade | AC8025P |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 8 deg |
| ISO Number | TCMT110204N-SK |
| Cutting Direction | Neutral |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Mounting Style | Top and hole Clamping |
| Non Ferrous (N) Compatibility | No |
| Coating | CVD |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Insert Thickness | 0.094 in |
| For Use With | Toolholders, Boring Bars |
| Cast Iron (K) Compatibility | Yes |
| No. of Edges | 3 |
| Hardened (H) Compatibility | No |
| ANSI Number | TCMT21.51ENK-AC8025P |
| Nose Radius | 0.0156 in |
| Steel (P) Compatibility | Yes |
| Mounting Hole Dia. | 0.11 in |
| Primary Material Application | Steel |
| Insert Holding Type | Countersink Hole |
| Coating Process | CVD |
| Through Hole Inside Dia. | 0.11 in |
| Included Angle | 60 Degrees |
| ANSI Code | TCMT21.51ENK |
| Features | Adhesion Resistant, Chipping Resistant |
| Shape | Triangle |
| Chip-Breaker Code | ENK |
| Manufacturer Grade | AC8025P |
| Cutting Application | Turning |
| Number of Cutting Edges | 3 |
| Chip-Breaker Style | On One Side |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P25 |
| Clearance Angle | 7 deg |
| Thickness | 0.0937 in |
| Finish - Machining | Absotech Platinum |
| Material - Machining | Carbide |
| Material | Carbide |
| Package Quantity | 1 |
