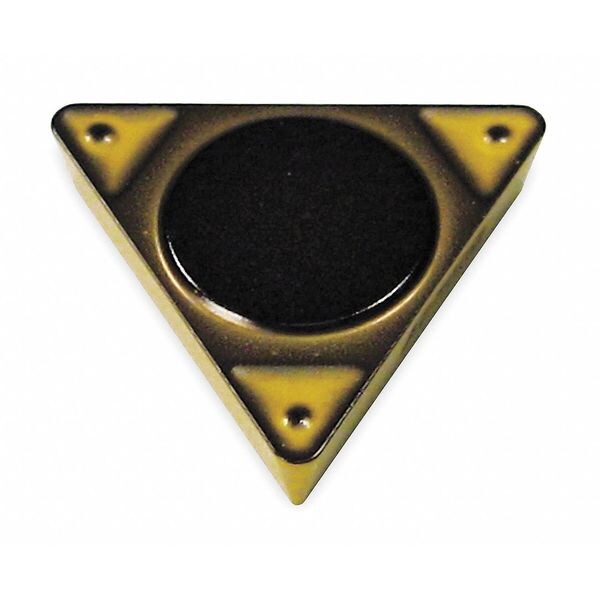

Triangle Turning Insert, Triangle, 3, TPMR, 1, Carbide
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TPMR |
| Inscribed Circle | 3 |
| Insert Size | 321 |
| Chip-Breaker | Yes |
| Grade | AC830P |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 0 deg |
| ISO Number | TPMR322ENF |
| Steel (P) Compatibility | Yes |
| Mounting Hole Dia. | N/A |
| Insert Thickness | 1/8 in |
| Nose Radius | 0.0157 in |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| Coating | Super FF TiCN/Al2O3/TiN CVD |
| No. of Edges | 3 |
| Non Ferrous (N) Compatibility | No |
| Mounting Style | Screw-On |
| For Use With | A-CTFP, S-TFP Boring Bars |
| Cutting Direction | Neutral |
| ANSI Number | TPMR321ENF-AC830P |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Relief Angle | 11 Degrees |
| Finish - Machining | Al203+TiCN |
| Measurement System | Fractional Inch |
| Chip-Breaker Style | On One Side |
| Cutting Application | Turning |
| Number of Cutting Edges | 3 |
| Shape | Triangle |
| Thickness | 1/8 in |
| Primary Material Application | Steel |
| Included Angle | 60 Degrees |
| Coating Process | CVD |
| Clearance Angle | 11 deg |
| Chip-Breaker Code | ENF |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | P |
| ANSI Code | TPMR321ENF |
| Manufacturer Grade | AC830P |
| Features | Fracture Resistant, Wear Resistant |
| Insert Holding Type | No Screw Hole |
| Material | Carbide |
| Package Quantity | 1 |
