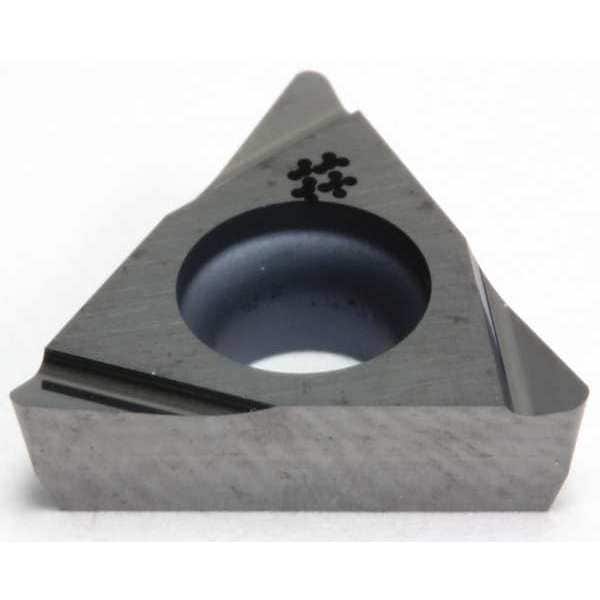

Triangle Turning Insert, Triangle, 6, TPGT, 1, Cermet
| Item | Triangle Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TPGT |
| Inscribed Circle | 6 |
| Insert Size | 631 |
| Chip-Breaker | Yes |
| Grade | T1500A |
| Corner Radius | 1 |
| Insert Material | Cermet |
| Insert Application | Finishing |
| Rake | 15 deg |
| ISO Number | TPGT080204R-FY |
| Mounting Style | Screw-On |
| Stainless (M) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Insert Thickness | 0.094 in |
| Cutting Direction | Neutral |
| Nose Radius | 0.0156 in |
| Steel (P) Compatibility | Yes |
| Mounting Hole Dia. | 0.09 in |
| Cast Iron (K) Compatibility | No |
| No. of Edges | 3 |
| For Use With | Toolholders, Boring Bars |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| ANSI Number | TPGT631RFY-T1500A |
| Non Ferrous (N) Compatibility | No |
| Coating | Uncoated |
| Super Alloy (S) Compatibility | No |
| Manufacturer Grade | T1500A |
| Included Angle | 60 Degrees |
| Clearance Angle | 11 deg |
| Through Hole Inside Dia. | 0.09 in |
| Number of Cutting Edges | 3 |
| Material - Machining | Cermet |
| ANSI Code | TPGT631RFY |
| Shape | Triangle |
| Thickness | 3/16 in |
| Chip-Breaker Style | On One Side |
| Primary Material Application ISO Code | P, M |
| Primary Material Application | Stainless Steel, Steel |
| Chip-Breaker Code | FY |
| Measurement System | Fractional Inch |
| Insert Holding Type | Countersink Hole |
| Cutting Application | Turning |
| Features | Fracture Resistant, Wear Resistant |
| Material | Cermet |
| Package Quantity | 1 |
