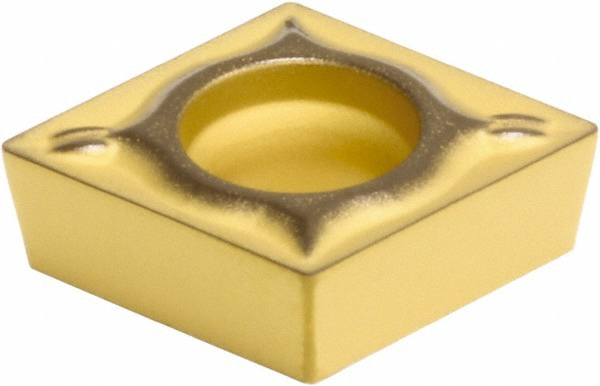

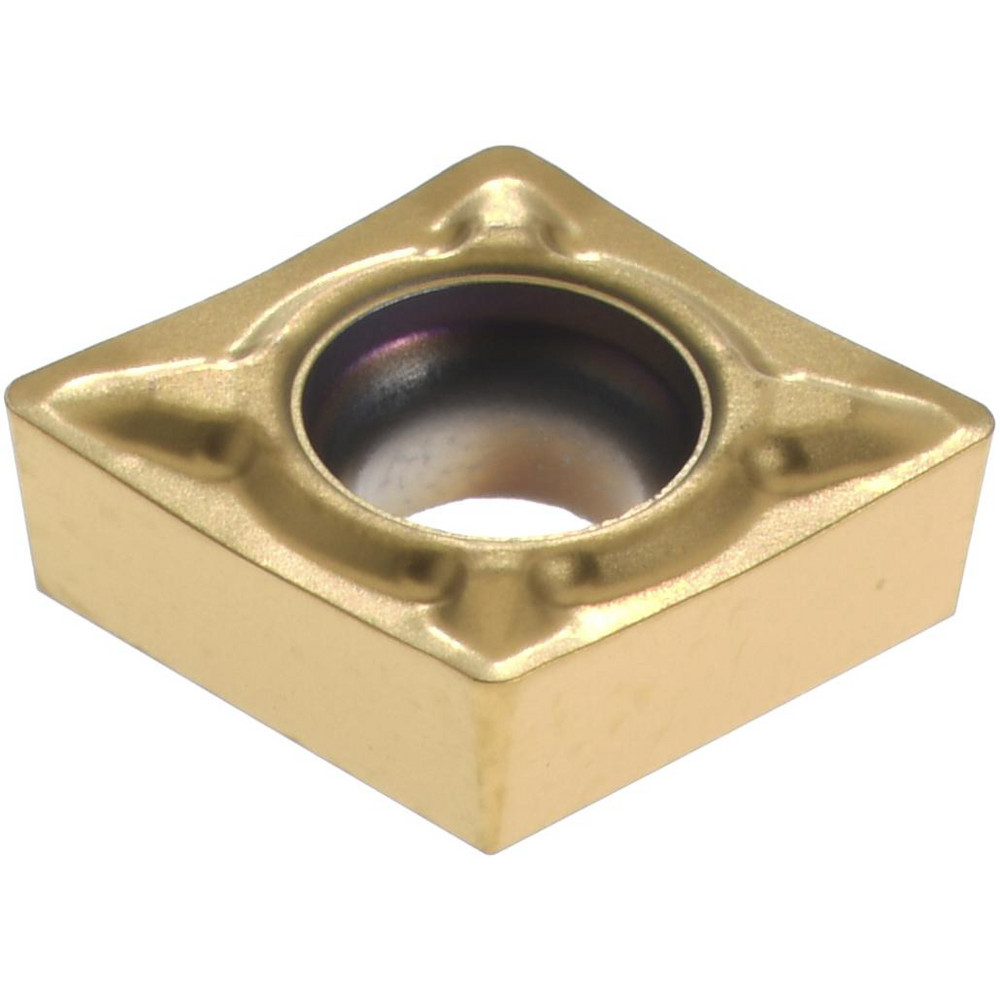

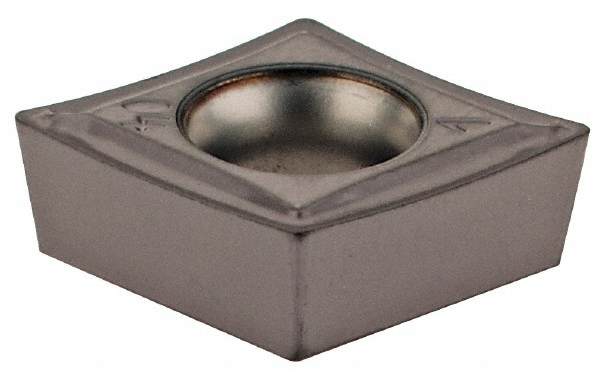

Al2O3 Finish, Neutral, 0.3819" Long, 0.3750" Inscribed Circle, 0.0156" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CC
| Insert Style | CCMT |
|---|---|
| ISO Size Code | 09T304 |
| ANSI Size Code | 32.51 |

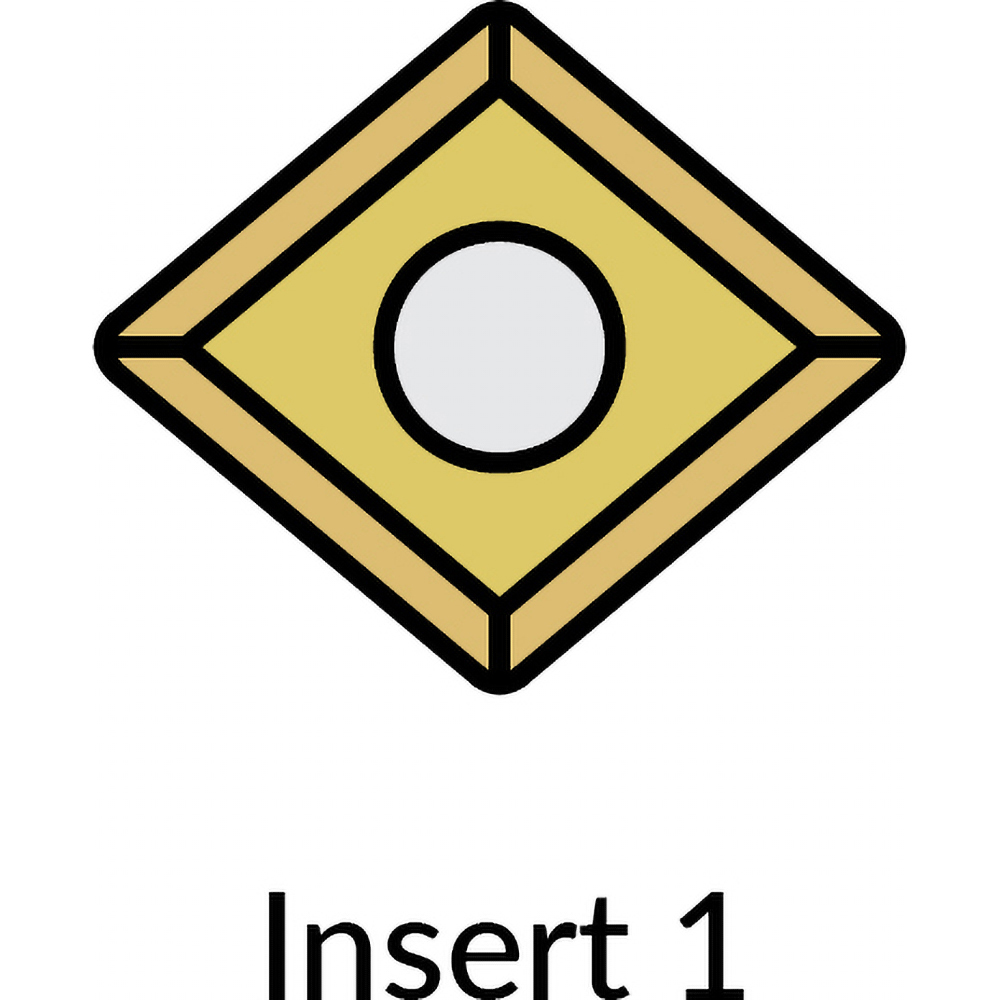

| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |

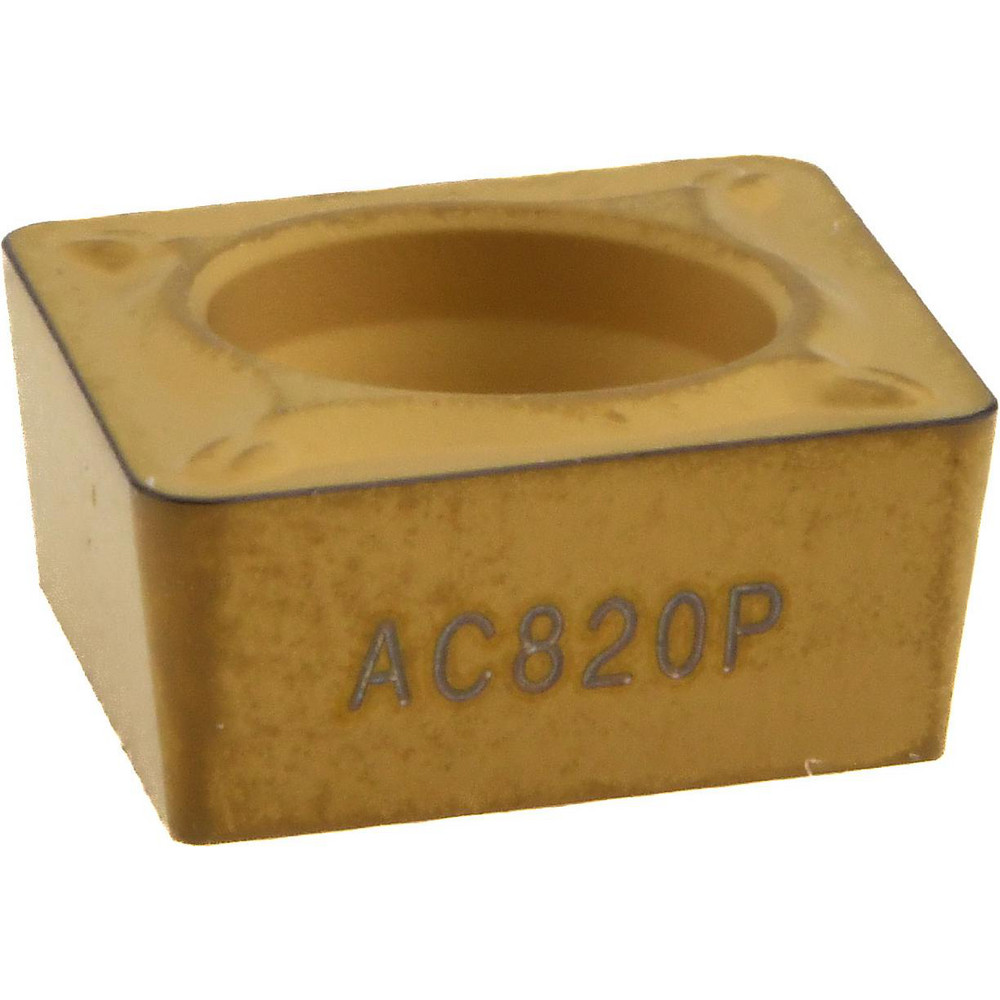

| Manufacturer Grade | AC820P |
| Coating/Finish | Al2O3 |
| Relief Angle | 7 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Hand | Neutral |
| Series | CC |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Light Machining; Finishing |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Insert Code | CCMT09T304 |
| ANSI Insert Code | CCMT32.51 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3819 |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | CCMT09T304N-SU |
| Standards | ISO 13399; ANSI |
| Chip Breaker | ESU |
| Rake Angle | 8 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| Country of Origin | Japan |
| MSC Number | MSC# 71969091 |
