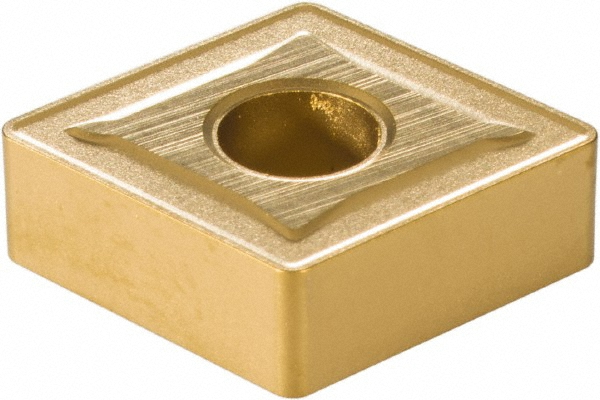

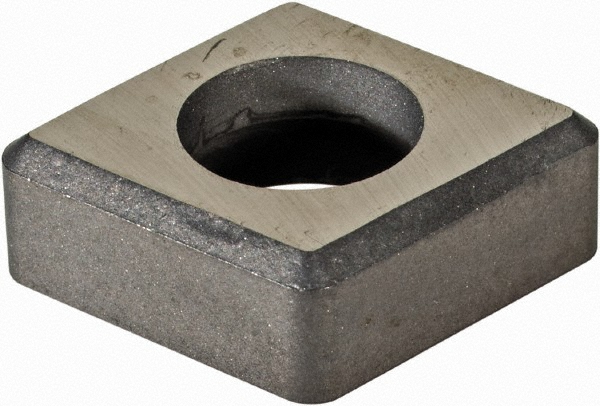

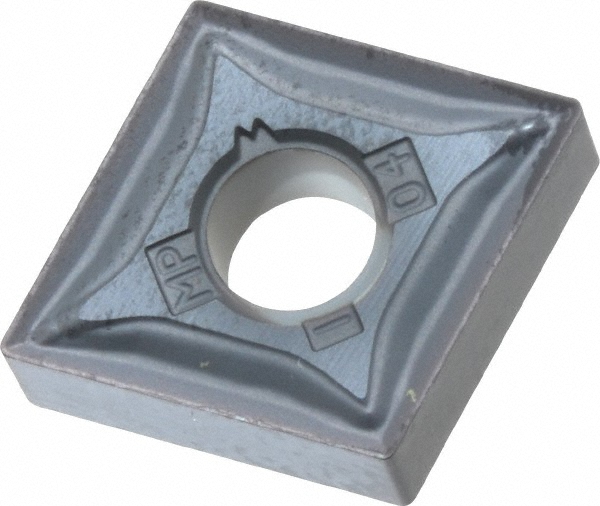

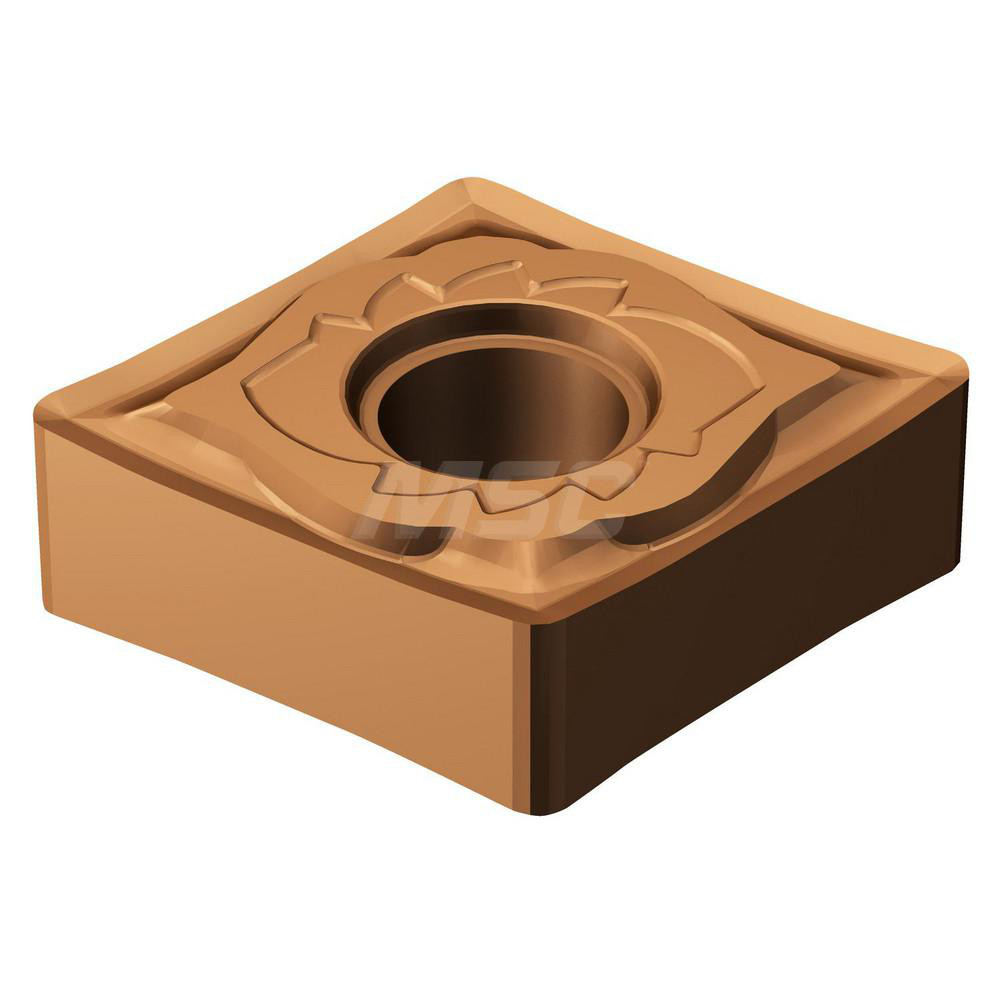

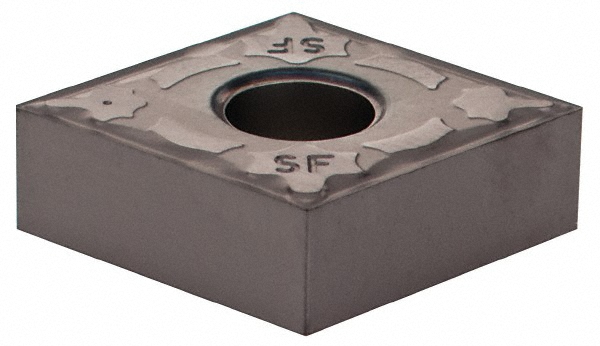

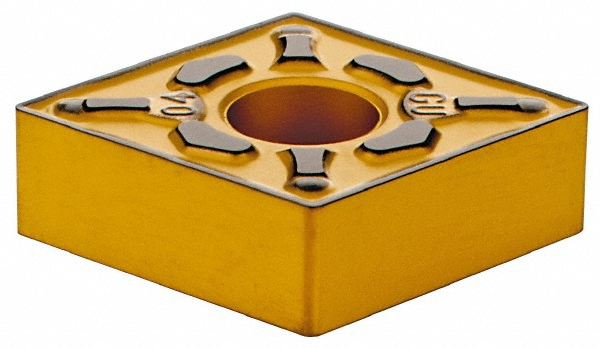

TiAlN & AlCrN Finish, Neutral, 0.5079" Long, 0.5000" Inscribed Circle, 0.0078" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CN
| Insert Style | CNGG |
|---|---|
| ISO Size Code | 120402 |
| ANSI Size Code | 430.5 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Insert Material | Carbide |
| Manufacturer Grade | AC510U |
| Coating/Finish | AlCrN; TiAlN |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | CN |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance |
| Chip Breaker Operation | Light Machining; Finishing |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Insert Code | CNGG120402 |
| ANSI Insert Code | CNGG430.5 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5079 |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Superalloy; Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | CNGG120402N-SU |
| Standards | ISO 13399; ANSI |
| Proprietary Coating Designation | Super ZX |
| Chip Breaker | ESU |
| Rake Angle | 13 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 430.5 |
| Country of Origin | Japan |
| MSC Number | MSC# 71969034 |
