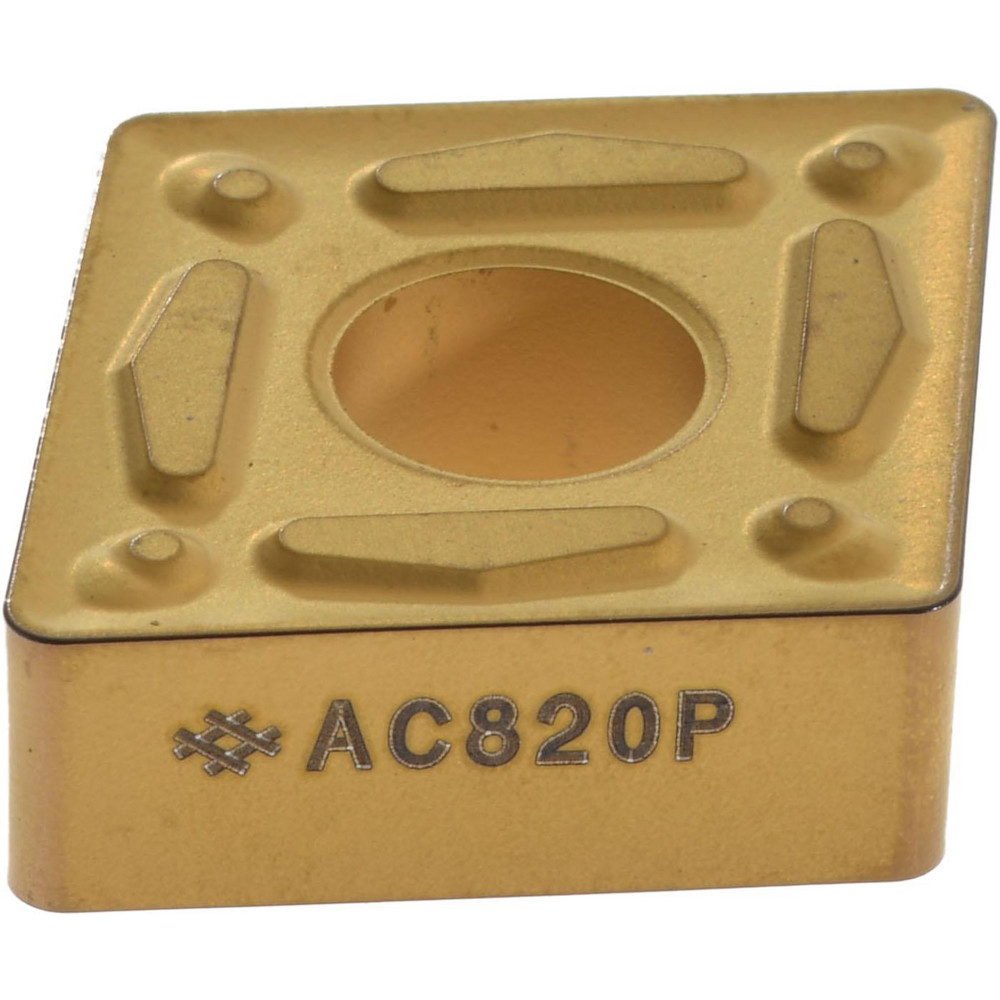

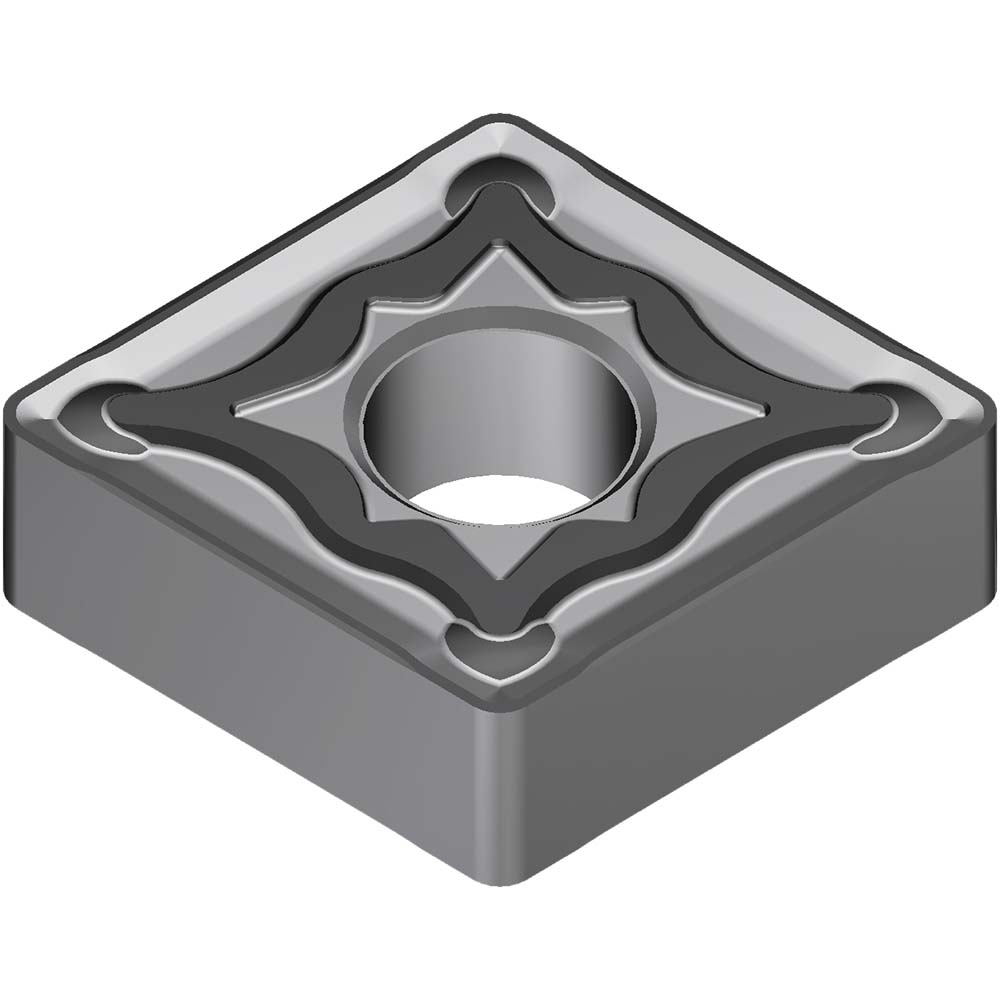

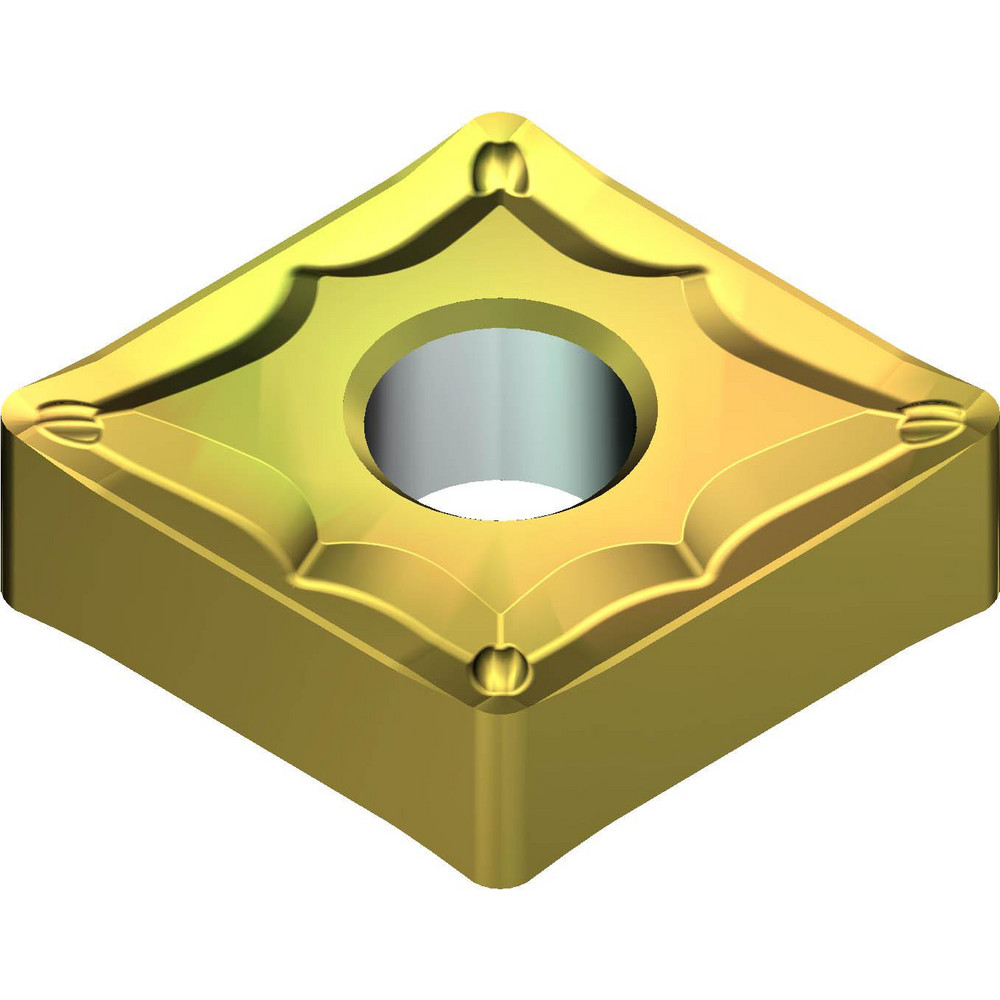

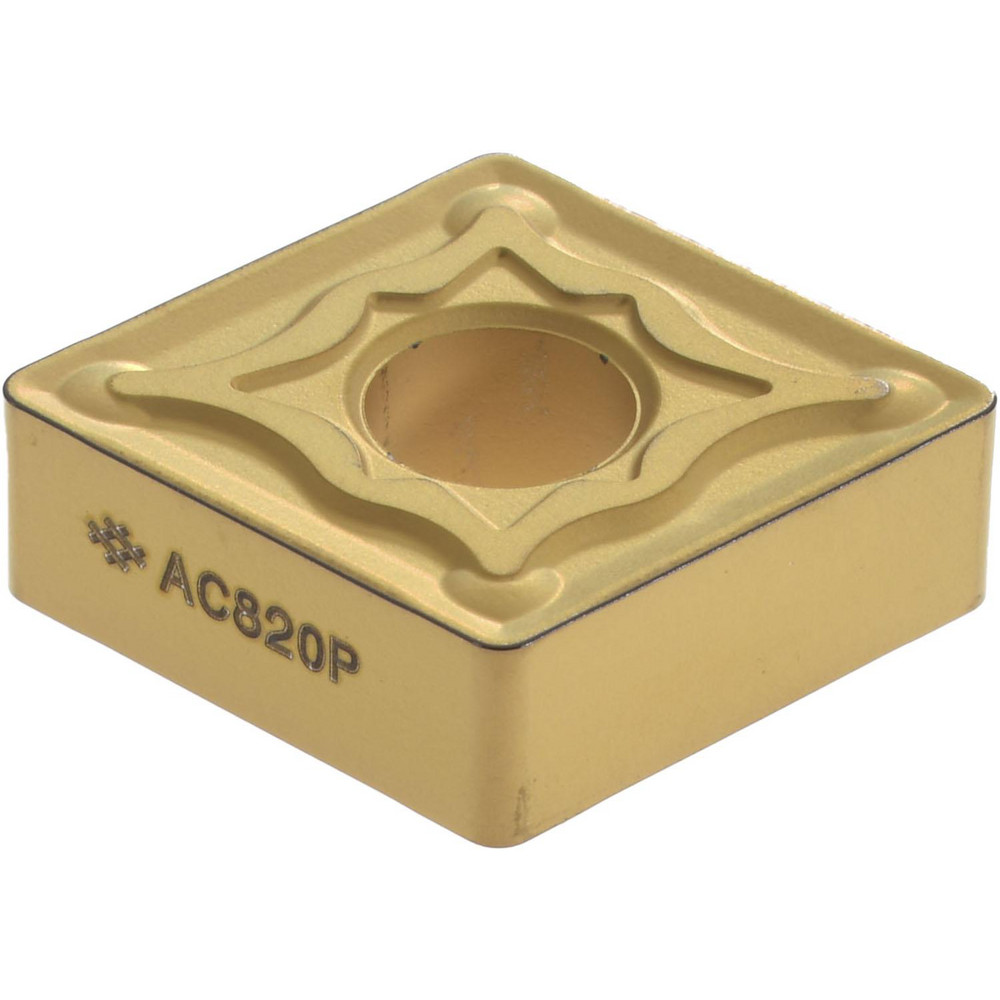

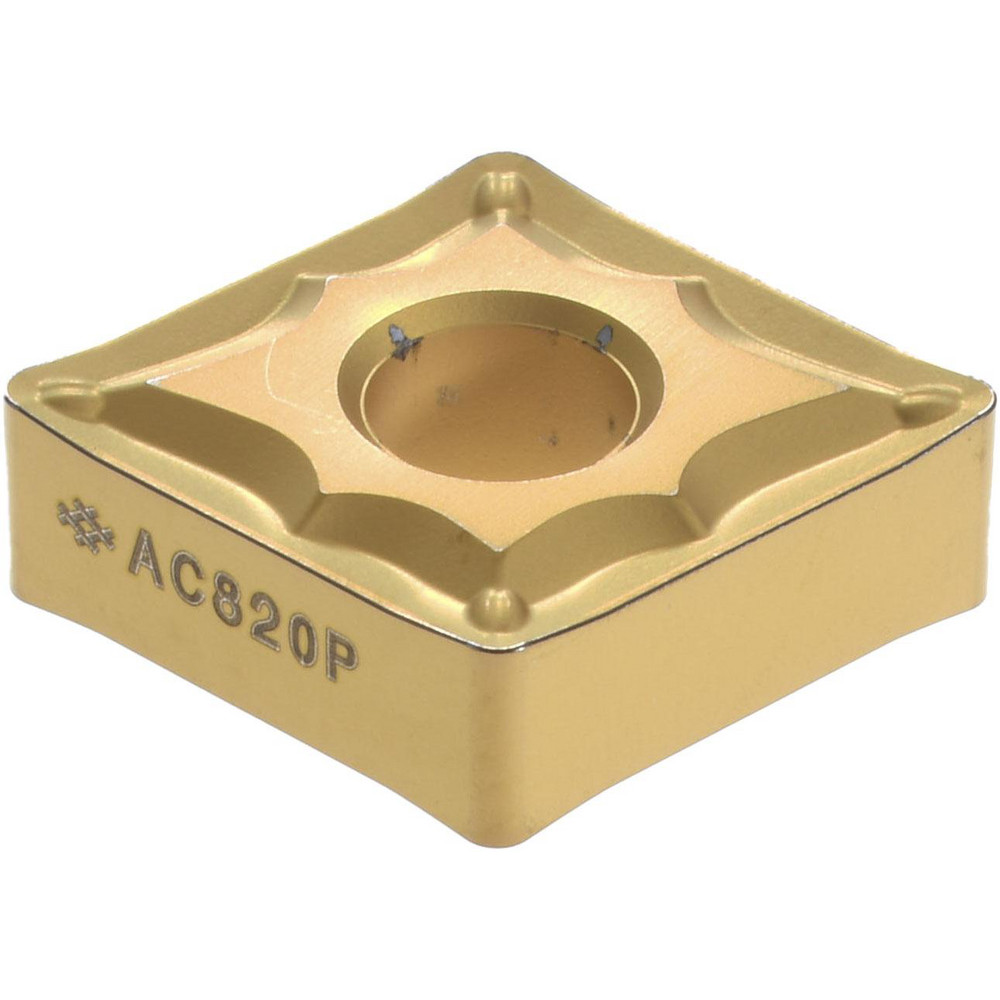

Coated Finish, Neutral, 0.5079" Long, 0.5000" Inscribed Circle, 0.0313" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CN
| Insert Style | CNMG |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | AC820P |
| Coating/Finish | Coated |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | CN |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Light Machining; Finishing |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Insert Code | CNMG120408 |
| ANSI Insert Code | CNMG432 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5079 |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | CNMG120408N-SU |
| Standards | ISO 13399; ANSI |
| Material Grade | C6; C7; C8; C5A |
| Chip Breaker | ESU |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 35566140 |
