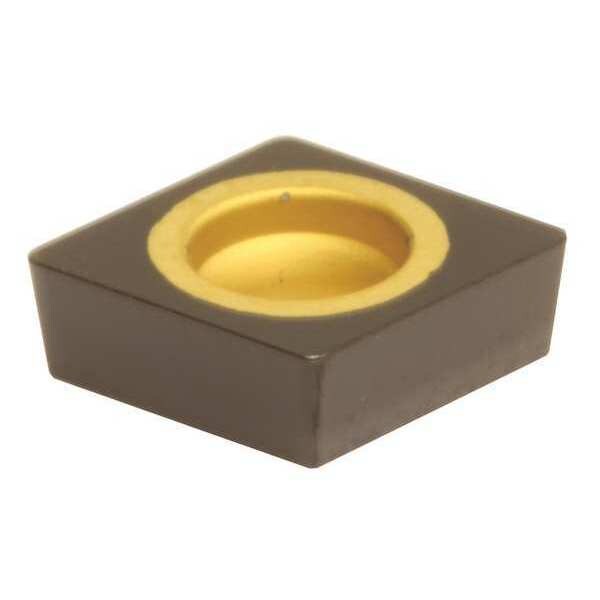

Turning Insert, Diamond, 0.25 in., CCMA, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCMA |
| Inscribed Circle | 1/4 in |
| Insert Size | 21.51 |
| Chip-Breaker | Yes |
| Grade | K20, K15, K15 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | 0 deg |
| ISO Number | CCMW060204 |
| Workpiece Compatibility | Cast Iron (K) |
| Super Alloy (S) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Coating | CBN |
| Cutting Direction | Neutral |
| Insert Thickness | 0.094 in |
| Mounting Hole Dia. | 0.11 in |
| ANSI Number | CCMA21.51-AC420K |
| Cast Iron (K) Compatibility | Yes |
| Nose Radius | 0.0156 in |
| No. of Edges | 4 |
| For Use With | Toolholders, Boring Bars |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | No |
| Mounting Style | Screw-On |
| Hardened (H) Compatibility | No |
| Relief Angle | 7 |
| Cutting Application | Turning |
| Finish - Machining | Al203+TiCN |
| Number of Cutting Edges | 4 |
| Insert Holding Type | Straight Hole |
| ANSI Code | CCMA21.51 |
| Chip-Breaker Style | Single |
| Shape | Rhombic |
| Included Angle | 80 Degrees |
| Clearance Angle | 7 deg |
| Coating Process | CVD |
| Thickness | 1.5 |
| Primary Material Application ISO Code | K10 - K20 |
| Measurement System | Fractional Inch |
| Manufacturer Grade | AC420K |
| Material - Machining | Carbide |
| Primary Material Application | Cast Iron |
| Material | Carbide |
| Style | CCMA |
| Application | Roughing |
| Series | AC420K |
| Corner Angle | 80 |
| Package Quantity | 1 |
