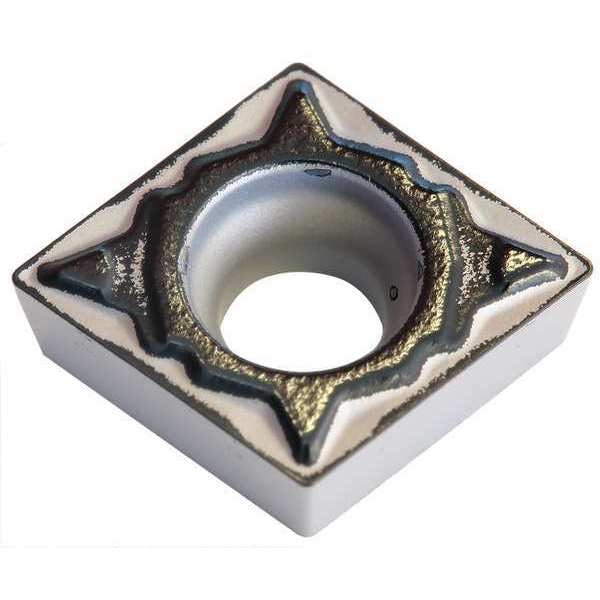

Turning Insert, Diamond, 0.25 in., CCMT, .5, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCMT |
| Inscribed Circle | 1/4 in |
| Insert Size | 21.50.5 |
| Chip-Breaker | ELU |
| Grade | M30, M35, M25 |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 12 deg |
| ISO Number | CCMT060202NLU |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.0078 in |
| Mounting Hole Dia. | 0.11 in |
| No. of Edges | 4 |
| Insert Thickness | 0.094 in |
| Cutting Direction | Neutral |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Coating | CVD |
| Hardened (H) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Stainless (M) |
| For Use With | Toolholders, Boring Bars |
| ANSI Number | CCMT21.50.5ELU-AC6030M |
| Mounting Style | Screw-On |
| Steel (P) Compatibility | No |
| Relief Angle | 7 |
| Measurement System | Fractional Inch |
| Clearance Angle | 7 deg |
| Cutting Application | Turning |
| Manufacturer Grade | AC6030M |
| Number of Cutting Edges | 4 |
| Shape | Rhombic |
| Finish - Machining | Absotech |
| Material - Machining | Carbide |
| Chip-Breaker Style | Single |
| Primary Material Application ISO Code | M |
| Thickness | 1.5 |
| ANSI Code | CCMT21.50.5ELU |
| Features | Fracture Resistant |
| Coating Process | CVD |
| Chip-Breaker Code | ELU |
| Insert Holding Type | Countersink Hole |
| Primary Material Application | Stainless Steel |
| Included Angle | 80 Degrees |
| Material | Carbide |
| Application | Finishing |
| Style | CCMT |
| Chip Breaker | ELU |
| Corner Angle | 80 |
| Series | AC6000M |
| Package Quantity | 1 |
