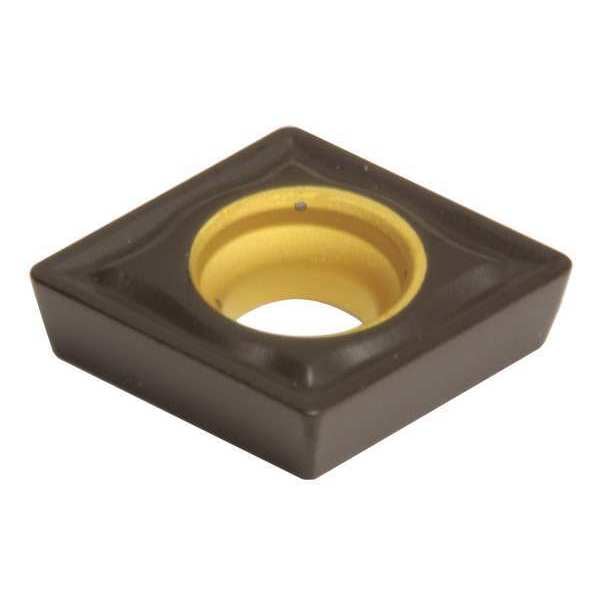

Turning Insert, Diamond, 0.375 in., CPMT, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CPMT |
| Inscribed Circle | 3/8 in |
| Insert Size | 321 |
| Chip-Breaker | EMU |
| Grade | K20, K15, K15 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | 0 deg |
| ISO Number | CPMT090308N-MU |
| Nose Radius | 0.0156 in |
| Cutting Direction | Neutral |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | No |
| Mounting Style | Top and Hole Clamping |
| Mounting Hole Dia. | 0.173 in |
| Cast Iron (K) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| ANSI Number | CPMT321EMU-AC420K |
| Coating | CVD |
| Steel (P) Compatibility | No |
| No. of Edges | 4 |
| For Use With | Toolholders, Boring Bars |
| Workpiece Compatibility | Cast Iron (K) |
| Insert Thickness | 1/8 in |
| Hardened (H) Compatibility | No |
| Relief Angle | 11 |
| Material - Machining | Carbide |
| Primary Material Application | Cast Iron |
| Measurement System | Fractional Inch |
| Cutting Application | Turning |
| Number of Cutting Edges | 4 |
| Thickness | 2 |
| Chip-Breaker Style | Single |
| ANSI Code | CPMT321EMU |
| Shape | Rhombic |
| Coating Process | CVD |
| Primary Material Application ISO Code | K10 - K20 |
| Finish - Machining | Al203+TiCN |
| Chip-Breaker Code | EMU |
| Included Angle | 80 Degrees |
| Insert Holding Type | Countersink Hole |
| Clearance Angle | 11 deg |
| Manufacturer Grade | AC420K |
| Material | Carbide |
| Application | Roughing |
| Style | CPMT |
| Corner Angle | 80 |
| Series | AC420K |
| Chip Breaker | EMU |
| Package Quantity | 1 |
