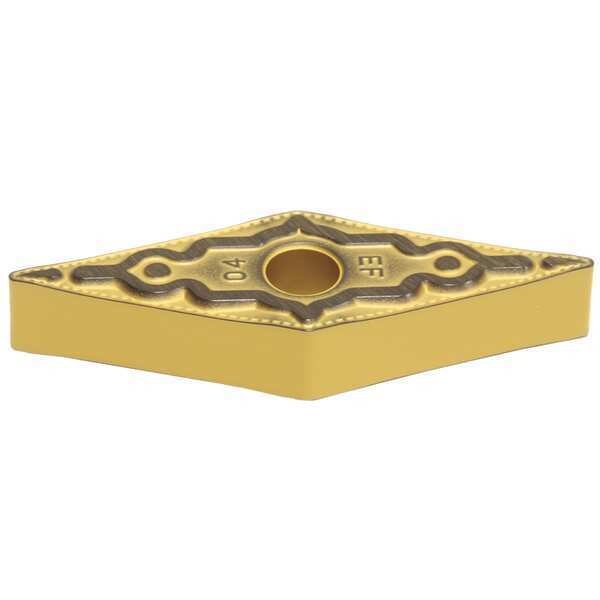

Turning Insert, Diamond, 0.375 in., VNMG, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | VNMG |
| Inscribed Circle | 3/8 in |
| Insert Size | 331 |
| Chip-Breaker | EEF |
| Grade | M30, M35, M30 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | VNMG160404N-EF |
| Insert Thickness | 3/16 in |
| Stainless (M) Compatibility | Yes |
| No. of Edges | 2 |
| For Use With | Toolholders, Boring Bars |
| Cast Iron (K) Compatibility | No |
| Mounting Style | Top and Hole Clamping |
| Nose Radius | 0.0156 in |
| Hardened (H) Compatibility | No |
| Cutting Direction | Neutral |
| ANSI Number | VNMG331EEF-AC6030M |
| Steel (P) Compatibility | No |
| Mounting Hole Dia. | 0.15 in |
| Non Ferrous (N) Compatibility | No |
| Workpiece Compatibility | Stainless (M) |
| Coating | Cermet |
| Super Alloy (S) Compatibility | No |
| Relief Angle | 0 |
| ANSI Code | VNMG331EEF |
| Cutting Application | Turning |
| Manufacturer Grade | AC6030M |
| Material - Machining | Carbide |
| Clearance Angle | 0 deg |
| Included Angle | 35 Degrees |
| Measurement System | Fractional Inch |
| Chip-Breaker Code | EEF |
| Primary Material Application ISO Code | M |
| Thickness | 3 |
| Coating Process | CVD |
| Number of Cutting Edges | 2 |
| Features | Fracture Resistant |
| Shape | Rhombic |
| Chip-Breaker Style | Double |
| Insert Holding Type | Straight Hole |
| Primary Material Application | Stainless Steel |
| Finish - Machining | Absotech |
| Material | Carbide |
| Application | Finishing |
| Style | VNMG |
| Chip Breaker | EEF |
| Corner Angle | 35 |
| Series | AC6000M |
| Package Quantity | 1 |
