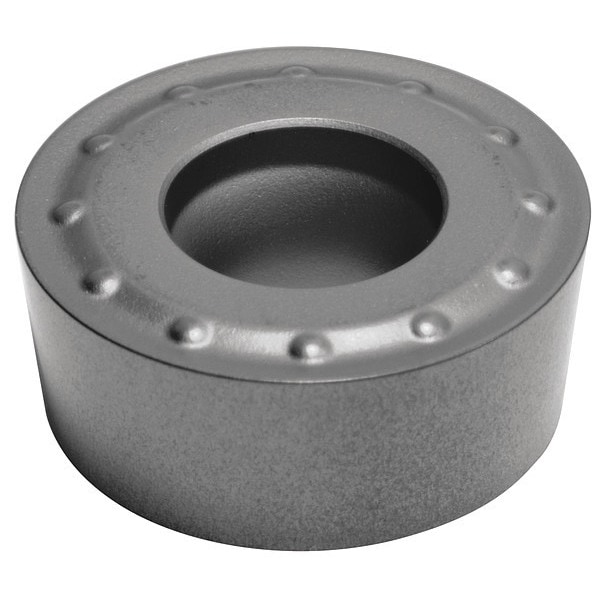

Turning Insert, Round, 0.315 in, RPGA, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RPGA |
| Inscribed Circle | 0.315 in |
| Insert Size | 80,300 |
| Chip-Breaker | None |
| Grade | AC5015S |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | RPGW0803M0 |
| ANSI Number | RPGA080300 |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| No. of Edges | 4 |
| Mounting Style | Screw |
| Relief Angle | 11 Degrees |
| Super Alloy (S) Compatibility | Yes |
| Non Ferrous (N) Compatibility | Yes |
| Cutting Direction | Neutral |
| For Use With | Toolholders, Boring Bars |
| Coating | PVD |
| Nose Radius | 0.157 in |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Insert Thickness | 1/8 in |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Primary Material Application ISO Code | P, M, S, K, N |
| Primary Material Application | Titanium, Brass, Bronze, Copper, Magnesium, Nickel, Cast Iron, Aluminum, Stainless Steel, Steel |
| Material | Carbide |
| Package Quantity | 1 |
