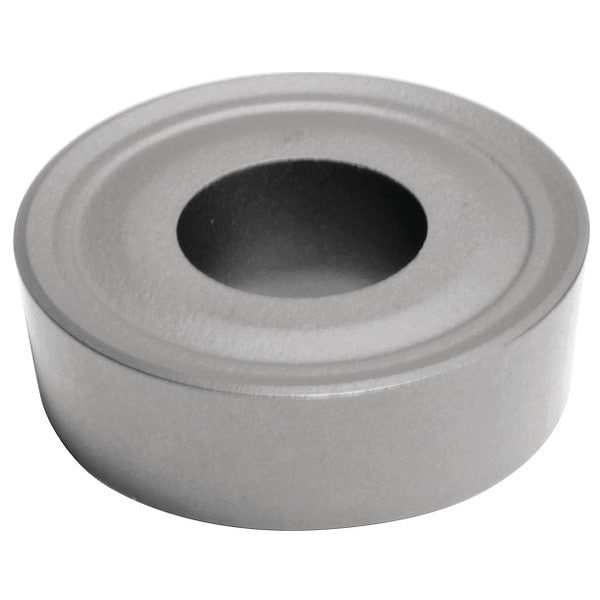

Turning Insert, Round, 0.787 in, RCMX, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RCMX |
| Inscribed Circle | 0.787 in |
| Insert Size | 200,600 |
| Chip-Breaker | None |
| Grade | AC5025S |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | RCMX2006M0N-RP |
| Non Ferrous (N) Compatibility | Yes |
| Mounting Style | Screw |
| Stainless (M) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Super Alloy (S) Compatibility | Yes |
| Coating | PVD |
| For Use With | Toolholders, Boring Bars |
| Hardened (H) Compatibility | No |
| ANSI Number | RCMX200600 |
| Nose Radius | 0.393 in |
| Relief Angle | 7 Degrees |
| Mounting Hole Dia. | 0.255 in |
| No. of Edges | 4 |
| Insert Thickness | 1/4 in |
| Cutting Direction | Neutral |
| Primary Material Application ISO Code | S10 - S30 |
| Primary Material Application | Titanium, Nickel |
| Material | Carbide |
| Package Quantity | 1 |
