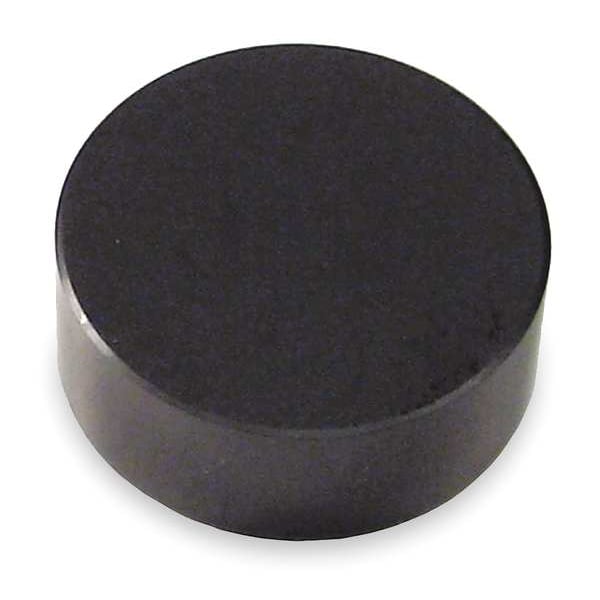

Turning Insert, Round, 4, RNGN, CBN
| Item | Turning Insert |
|---|---|
| Insert Shape | Round |
| Insert Style | RNGN |
| Inscribed Circle | 4 |
| Insert Size | 43 |
| Chip-Breaker | No |
| Grade | BNS800 |
| Insert Material | CBN |
| Insert Application | Roughing |
| Rake | 0 deg |
| ISO Number | RNGN120400-BNS800 |
| For Use With | N/A |
| Stainless (M) Compatibility | No |
| Super Alloy (S) Compatibility | Yes |
| Mounting Hole Dia. | N/A |
| Steel (P) Compatibility | No |
| ANSI Number | RNG43-BNS800 |
| Hardened (H) Compatibility | No |
| Insert Thickness | 3/16 in |
| No. of Edges | N/A |
| Mounting Style | Clamp |
| Cast Iron (K) Compatibility | Yes |
| Coating | Uncoated |
| Workpiece Compatibility | Cast Iron (K), Super Alloy (S) |
| Relief Angle | 0 Degrees |
| Nose Radius | 0 |
| Non Ferrous (N) Compatibility | No |
| Cutting Direction | Neutral |
| Primary Material Application | Titanium, Nickel, Cast Iron |
| Primary Material Application ISO Code | S, K |
| Material | CBN |
| Package Quantity | 1 |
