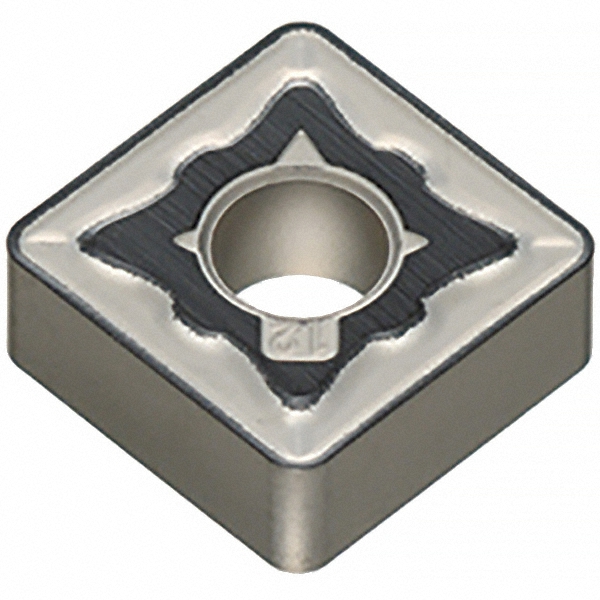

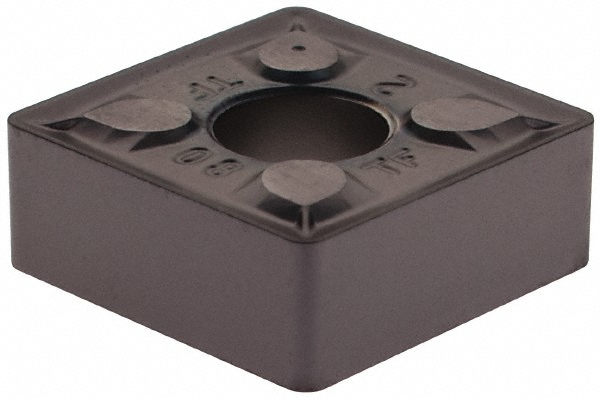

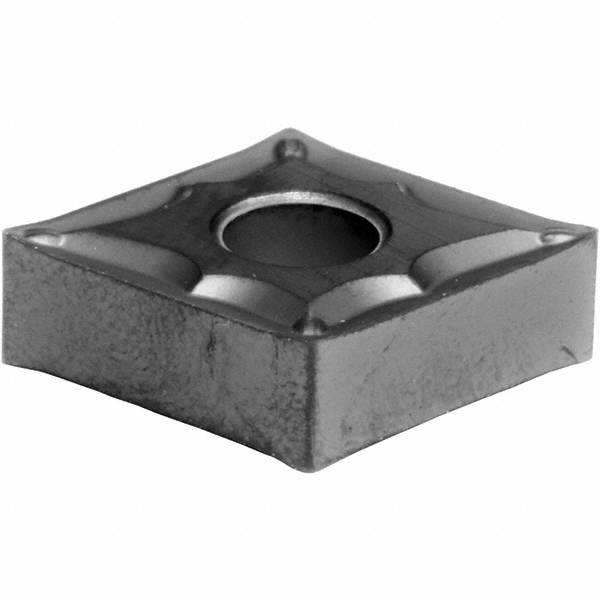

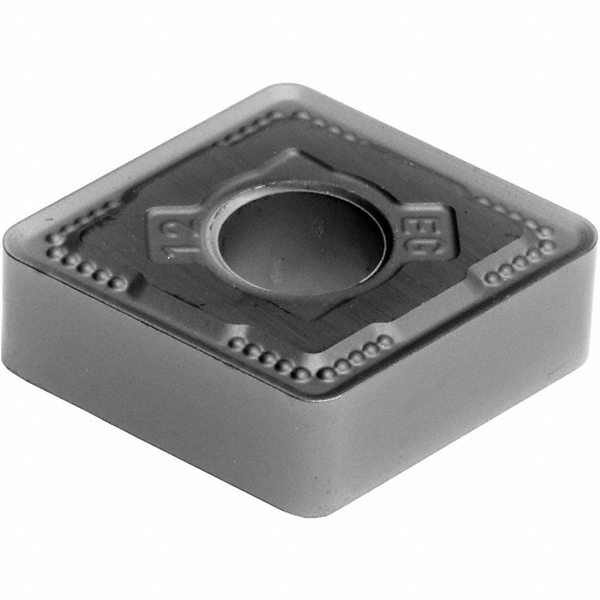

TiAlSiN Finish, Neutral, 1/2" Long, 1/2" Inscribed Circle, 90 deg S - Square, Series AC5000S
| Insert Style | SNMG |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |
| Insert Shape | S - Square |
| Included Angle | 90 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | AC5025S |
| Coating/Finish | TiAlSiN |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | AC5000S |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Side Clearance | Negative |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Insert Code | SNMG120408 |
| ANSI Insert Code | SNMG432 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/2 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S; H |
| Iso Code | SNMG120408N-EM |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | SNMG432EEM-AC5025S |
| Material Grade | S20 |
| Proprietary Coating Designation | Absotech Bronze |
| Chip Breaker | EEM |
| Rake Angle | 0 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Full Radius | No |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 15121791 |
