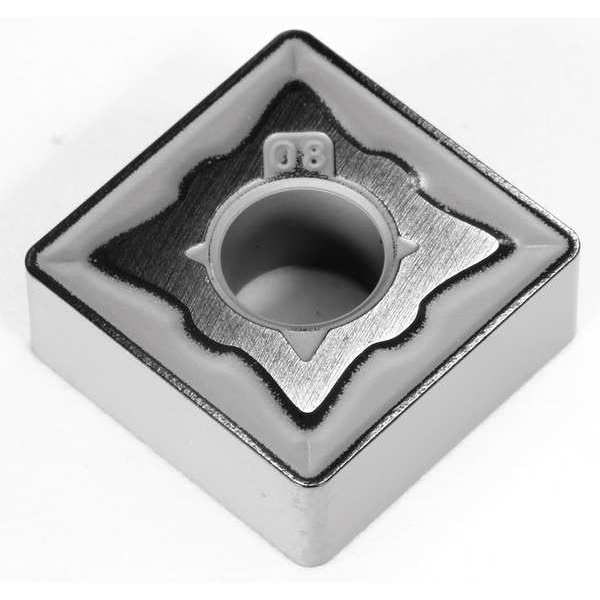

Turning Insert, Square, 0.5 in., SNMG, 2, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Square |
| Insert Style | SNMG |
| Inscribed Circle | 1/2 in |
| Insert Size | 432 |
| Chip-Breaker | EEM |
| Grade | M30, M35, M25 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Positive |
| ISO Number | SNMG120408N-EM |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Stainless (M) |
| For Use With | Toolholders, Boring Bars |
| Mounting Style | Top and hole Clamping |
| Coating | PVD |
| ANSI Number | SNMG432EEM-AC6030M |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Nose Radius | 0.0313 in |
| Mounting Hole Dia. | 0.203 in |
| Cast Iron (K) Compatibility | No |
| Insert Thickness | 3/16 in |
| No. of Edges | 4 |
| Non Ferrous (N) Compatibility | No |
| Relief Angle | 0 |
| Measurement System | Fractional Inch |
| Insert Holding Type | Straight Hole |
| Shape | Square |
| Chip-Breaker Code | EEM |
| Primary Material Application ISO Code | M |
| ANSI Code | SNMG432EEM |
| Thickness | 3/16 in |
| Chip-Breaker Style | Double Sided |
| Clearance Angle | 0 deg |
| Included Angle | 90 Degrees |
| Material - Machining | Carbide |
| Cutting Application | Turning |
| Manufacturer Grade | AC6030M |
| Primary Material Application | Stainless Steel |
| Features | Fracture Resistant |
| Number of Cutting Edges | 4 |
| Finish - Machining | Absotech |
| Coating Process | CVD |
| Material | Carbide |
| Corner Angle | 90 |
| Series | AC6000M |
| Chip Breaker | EEM |
| Package Quantity | 1 |
