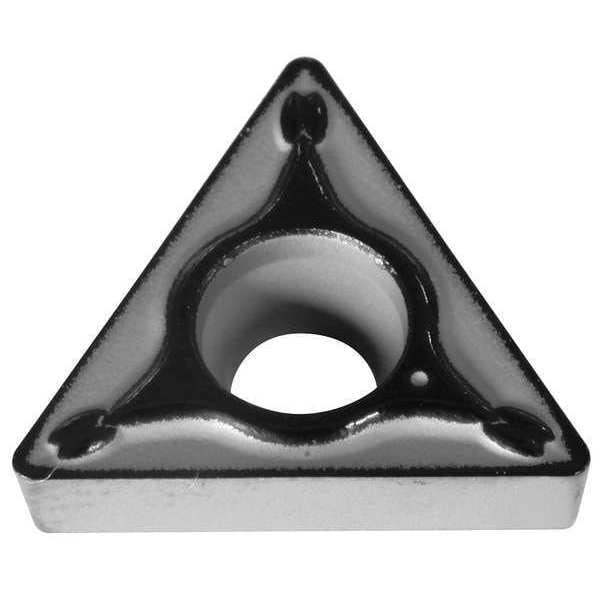

Turning Insert, Triangle, 0.25 in., TCMT, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TCMT |
| Inscribed Circle | 1/4 in |
| Insert Size | 21.51 |
| Chip-Breaker | ESU |
| Grade | M30, M35, M30 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 13 deg |
| ISO Number | TCMT110204NSU |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Mounting Hole Dia. | 0.11 in |
| No. of Edges | 3 |
| Coating | CVD |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | No |
| Insert Thickness | 0.094 in |
| ANSI Number | TCMT21.51ESU-AC6030M |
| Stainless (M) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Stainless (M) |
| For Use With | Toolholders, Boring Bars |
| Super Alloy (S) Compatibility | No |
| Nose Radius | 0.0156 in |
| Mounting Style | Top and hole Clamping |
| Relief Angle | 7 |
| Number of Cutting Edges | 3 |
| Insert Holding Type | Countersink Hole |
| Finish - Machining | Absotech |
| Primary Material Application ISO Code | M |
| Manufacturer Grade | AC6030M |
| Material - Machining | Carbide |
| Features | Fracture Resistant, Wear Resistant |
| Cutting Application | Turning |
| Thickness | 0.0937 in |
| Chip-Breaker Style | On One Side |
| Through Hole Inside Dia. | 0.11 in |
| Coating Process | CVD |
| Included Angle | 60 Degrees |
| Shape | Triangle |
| Chip-Breaker Code | ESU |
| ANSI Code | TCMT21.51ESU |
| Measurement System | Fractional Inch |
| Primary Material Application | Stainless Steel |
| Clearance Angle | 7 deg |
| Material | Carbide |
| Corner Angle | 60 |
| Series | AC6000M |
| Chip Breaker | ESU |
| Package Quantity | 1 |
