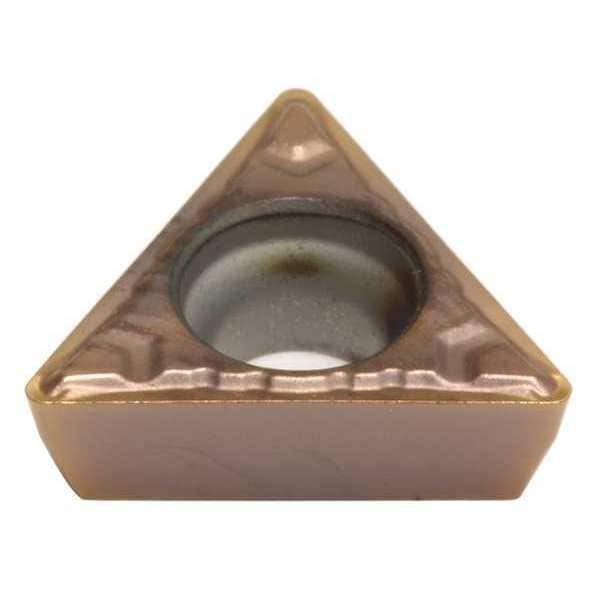

Turning Insert, Triangle, 0.25 in., TPMT, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TPMT |
| Inscribed Circle | 1/4 in |
| Insert Size | 221 |
| Chip-Breaker | ELU |
| Grade | M40, M30, M25 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 12 deg |
| ISO Number | TPMT110304NLU |
| ANSI Number | TPMT221ELU-AC6040M |
| Hardened (H) Compatibility | No |
| Coating | CVD |
| For Use With | Toolholders, Boring Bars |
| Insert Thickness | 1/8 in |
| Cutting Direction | Neutral |
| Nose Radius | 0.0156 in |
| No. of Edges | 3 |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | No |
| Mounting Style | Screw-On |
| Super Alloy (S) Compatibility | No |
| Workpiece Compatibility | Stainless (M) |
| Mounting Hole Dia. | 0.13 in |
| Cast Iron (K) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Relief Angle | 11 |
| Material - Machining | Carbide |
| Chip-Breaker Style | On One Side |
| Measurement System | Fractional Inch |
| Coating Process | PVD |
| Insert Holding Type | Countersink Hole |
| Chip-Breaker Code | ELU |
| Cutting Application | Turning |
| Features | Excellent Fracture Resistance |
| Clearance Angle | 11 deg |
| Manufacturer Grade | AC6040M |
| Shape | Triangle |
| Included Angle | 60 Degrees |
| Through Hole Inside Dia. | 0.11 in |
| Finish - Machining | TiAlN+AlCrN |
| Thickness | 1/8 in |
| ANSI Code | TPMT221ELU |
| Primary Material Application ISO Code | M |
| Number of Cutting Edges | 3 |
| Primary Material Application | Stainless Steel |
| Material | Carbide |
| Series | AC6000M |
| Corner Angle | 60 |
| Chip Breaker | ELU |
| Package Quantity | 1 |
