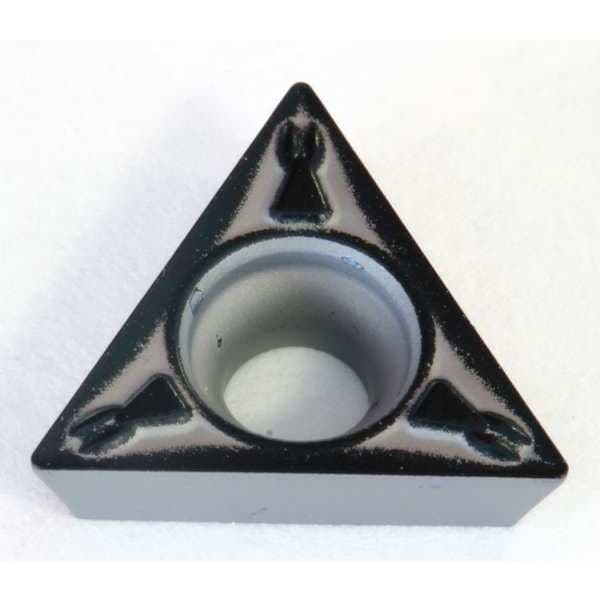

Turning Insert, Triangle, 0.25 in., TPMT, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Insert Style | TPMT |
| Inscribed Circle | 1/4 in |
| Insert Size | 221 |
| Chip-Breaker | ESU |
| Grade | M30, M35, M30 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 13 deg |
| ISO Number | TPMT110304NSU |
| Insert Thickness | 1/8 in |
| Nose Radius | 0.0156 in |
| Stainless (M) Compatibility | Yes |
| ANSI Number | TPMT221ESU-AC6030M |
| For Use With | Toolholders, Boring Bars |
| Mounting Hole Dia. | 0.13 in |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Coating | CVD |
| Cast Iron (K) Compatibility | No |
| Hardened (H) Compatibility | No |
| No. of Edges | 3 |
| Cutting Direction | Neutral |
| Non Ferrous (N) Compatibility | No |
| Workpiece Compatibility | Stainless (M) |
| Mounting Style | Top and hole Clamping |
| Relief Angle | 11 |
| Clearance Angle | 11 deg |
| Shape | Triangle |
| Insert Holding Type | Countersink Hole |
| Measurement System | Fractional Inch |
| Manufacturer Grade | AC6030M |
| Included Angle | 60 Degrees |
| Through Hole Inside Dia. | 0.13 in |
| Chip-Breaker Style | On One Side |
| Material - Machining | Carbide |
| Chip-Breaker Code | ESU |
| Thickness | 1/8 in |
| Features | Fracture Resistant, Wear Resistant |
| Number of Cutting Edges | 3 |
| ANSI Code | TPMT221ESU |
| Primary Material Application | Stainless Steel |
| Primary Material Application ISO Code | M |
| Cutting Application | Turning |
| Finish - Machining | Absotech |
| Coating Process | CVD |
| Material | Carbide |
| Corner Angle | 60 |
| Series | AC6000M |
| Chip Breaker | ESU |
| Package Quantity | 1 |
