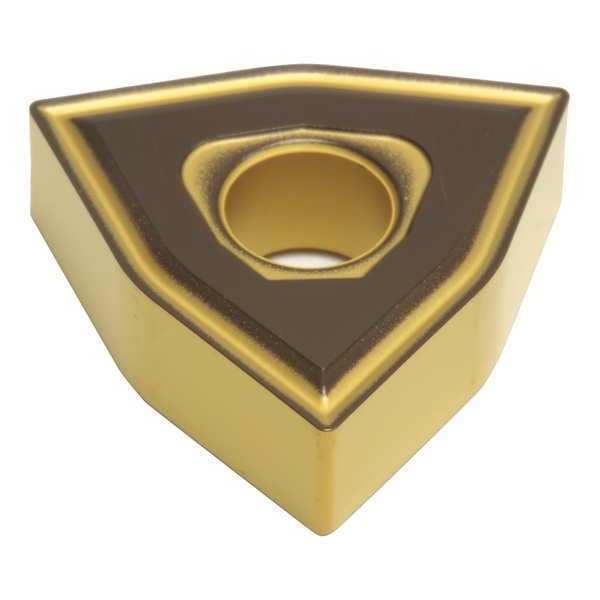

Turning Insert, Trigon, 0.5 in., WNMG, 3, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNMG |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Chip-Breaker | EEX |
| Grade | M30, M35, M30 |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | 16 deg |
| ISO Number | WNMG080412N-EX |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Stainless (M) |
| Cutting Direction | Neutral |
| Stainless (M) Compatibility | Yes |
| Nose Radius | 0.0469 in |
| Coating | CVD |
| ANSI Number | WNMG433EEX-AC6030M |
| Cast Iron (K) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Non Ferrous (N) Compatibility | No |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Mounting Style | Top and hole Clamping |
| Insert Thickness | 3/16 in |
| No. of Edges | 3 |
| For Use With | Toolholders, Boring Bars |
| Relief Angle | 0 |
| Cutting Application | Turning |
| Through Hole Inside Dia. | 0.2031 in |
| Primary Material Application | Stainless Steel |
| Finish - Machining | Absotech |
| Primary Material Application ISO Code | M |
| Thickness | 3 |
| Insert Holding Type | Straight Hole |
| Measurement System | Fractional Inch |
| ANSI Code | WNMG433EEX |
| Included Angle | 80 Degrees |
| Chip-Breaker Code | EEX |
| Shape | Trigon |
| Manufacturer Grade | AC6030M |
| Features | Fracture Resistant, Wear Resistant |
| Clearance Angle | 0 deg |
| Coating Process | CVD |
| Chip-Breaker Style | Double Sided |
| Material - Machining | Carbide |
| Material | Carbide |
| Chip Breaker | EEX |
| Corner Angle | 80 |
| Series | AC6000M |
| Package Quantity | 1 |
