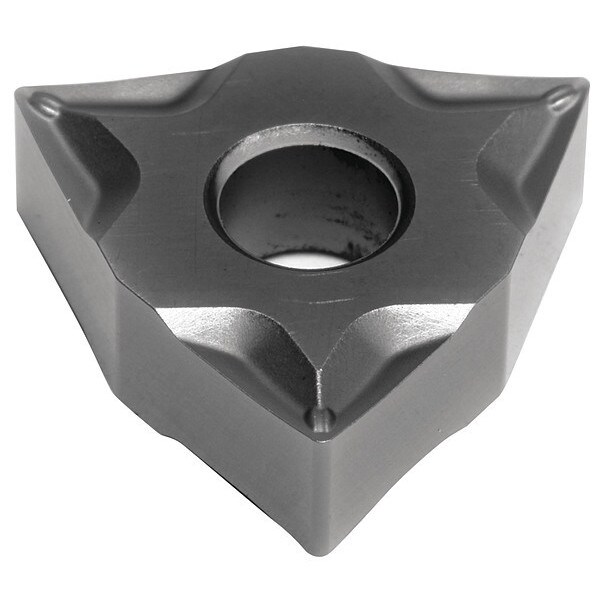

Turning Insert, Trigon, 4, WNGG, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNGG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | AC5025S |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | 13 deg |
| ISO Number | WNGG080404N-SU |
| For Use With | Toolholders, Boring Bars |
| Non Ferrous (N) Compatibility | Yes |
| Coating | PVD |
| Insert Thickness | 0.187 in |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| No. of Edges | 6 |
| Cutting Direction | Neutral |
| Mounting Hole Dia. | 0.203 in |
| Stainless (M) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Relief Angle | 0 Degrees |
| ANSI Number | WNGG431ESU |
| Mounting Style | Screw |
| Nose Radius | 0.015 in |
| Cast Iron (K) Compatibility | Yes |
| Shape | Trigon |
| ANSI Code | WNGG431ESU |
| Chip-Breaker Style | Double Sided |
| Coating Process | PVD |
| Cutting Application | Turning |
| Included Angle | 80 Degrees |
| Manufacturer Grade | AC5025S |
| Clearance Angle | 0 deg |
| Through Hole Inside Dia. | 0.2031 in |
| Thickness | 3 |
| Primary Material Application ISO Code | S10 - S30 |
| Finish - Machining | AlTiSiN |
| Chip-Breaker Code | ESU |
| Material - Machining | Carbide |
| Primary Material Application | Titanium, Nickel |
| Insert Holding Type | Straight Hole |
| Features | Excellent Wear Resistance |
| Measurement System | Fractional Inch |
| Material | Carbide |
| Package Quantity | 1 |
