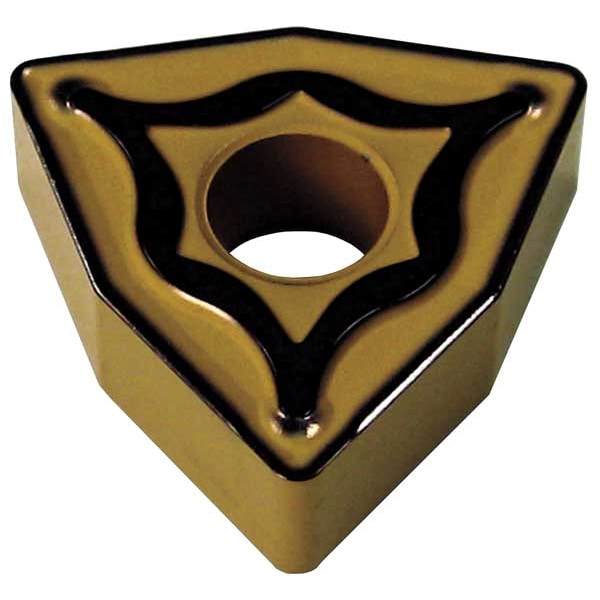

Turning Insert, Trigon, 4, WNMG, 1, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNMG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | AC820P |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | 0 deg |
| ISO Number | WNMG080404NUX |
| Nose Radius | 0.0157 in |
| For Use With | MWLN, DWLN Toolholders, A-MWLN, D-DWLN Boring Bars |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
| ANSI Number | WNMG431EUX-AC820P |
| Non Ferrous (N) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| No. of Edges | 6 |
| Mounting Hole Dia. | 0.203 |
| Cast Iron (K) Compatibility | Yes |
| Cutting Direction | Neutral |
| Insert Thickness | 3/16 in |
| Relief Angle | 0 Degrees |
| Coating | Super FF TiCN/Al2O3/TiN CVD |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Mounting Style | Clamp |
| Stainless (M) Compatibility | Yes |
| Thickness | 3 |
| Finish - Machining | Al203+TiCN |
| Measurement System | Fractional Inch |
| Shape | Trigon |
| ANSI Code | WNMG431EUX |
| Included Angle | 80 Degrees |
| Number of Cutting Edges | 6 |
| Insert Holding Type | Straight Hole |
| Features | Fracture Resistant, Wear Resistant |
| Through Hole Inside Dia. | 0.2031 in |
| Primary Material Application ISO Code | K20, P20 |
| Manufacturer Grade | AC820P |
| Material - Machining | Carbide |
| Primary Material Application | Cast Iron, Steel |
| Coating Process | CVD |
| Chip-Breaker Code | EUX |
| Chip-Breaker Style | Double Sided |
| Cutting Application | Turning |
| Clearance Angle | 0 deg |
| Material | Carbide |
| Package Quantity | 1 |
