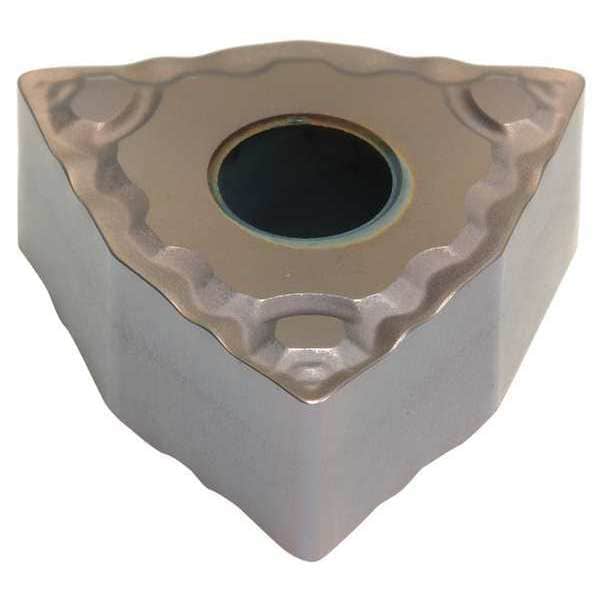

Turning Insert, Trigon, 4, WNMG, 2, Cermet
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNMG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | T1500Z |
| Corner Radius | 2 |
| Insert Material | Cermet |
| Insert Application | Finishing |
| Rake | 10 deg |
| ISO Number | WNMG080408N-LUW |
| Super Alloy (S) Compatibility | No |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Stainless (M) Compatibility | Yes |
| ANSI Number | WNMG432ELUW-T1500Z |
| Cast Iron (K) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Coating | CVD |
| Mounting Style | Screw-On |
| Cutting Direction | Neutral |
| No. of Edges | 3 |
| Nose Radius | 0.0313 in |
| Insert Thickness | 3/16 in |
| For Use With | Toolholders, Boring Bars |
| Material - Machining | Cermet |
| Included Angle | 80 Degrees |
| Insert Holding Type | Straight Hole |
| Through Hole Inside Dia. | 0.2031 in |
| Clearance Angle | 0 deg |
| Features | Excellent Wear Resistance |
| Chip-Breaker Style | Double Sided |
| Shape | Trigon |
| Primary Material Application | Steel |
| Wiper Insert | Yes |
| Coating Process | PVD |
| Manufacturer Grade | T1500Z |
| Cutting Application | Turning |
| ANSI Code | WNMG432ELUW |
| Thickness | 3 |
| Chip-Breaker Code | ELU |
| Primary Material Application ISO Code | P |
| Measurement System | Fractional Inch |
| Material | Cermet |
| Package Quantity | 1 |
