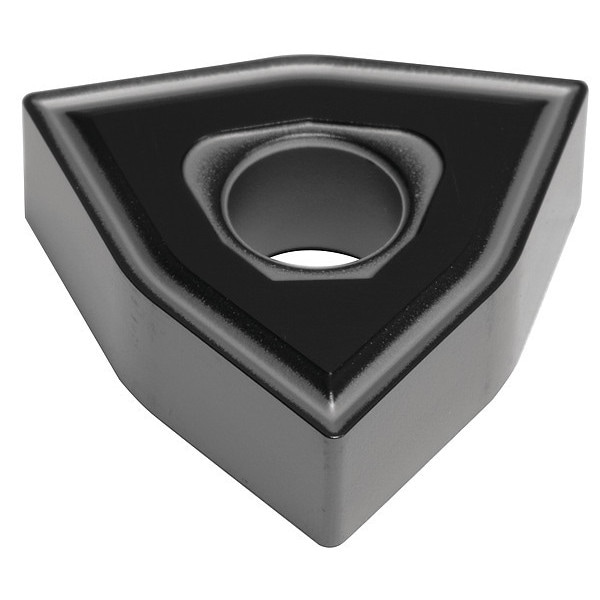

Turning Insert, Trigon, 4, WNMG, 3, Carbide
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WNMG |
| Inscribed Circle | 4 |
| Insert Size | 433 |
| Chip-Breaker | Yes |
| Grade | AC5015S |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | 0 deg |
| ISO Number | WNMG080412N-EM |
| Stainless (M) Compatibility | Yes |
| No. of Edges | 6 |
| Coating | PVD |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | Yes |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
| Cutting Direction | Neutral |
| For Use With | Toolholders, Boring Bars |
| ANSI Number | WNMG433EEM |
| Mounting Style | Screw |
| Insert Thickness | 0.187 in |
| Mounting Hole Dia. | 0.203 in |
| Nose Radius | 0.046 in |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Relief Angle | 0 Degrees |
| Measurement System | Fractional Inch |
| Features | Excellent Wear Resistance |
| Shape | Trigon |
| Through Hole Inside Dia. | 0.2031 in |
| Clearance Angle | 0 deg |
| Finish - Machining | AlTiSiN |
| Cutting Application | Turning |
| Insert Holding Type | Straight Hole |
| Chip-Breaker Code | EEM |
| Included Angle | 80 Degrees |
| ANSI Code | WNMG433EEM |
| Thickness | 3 |
| Number of Cutting Edges | 6 |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | S01 - S20 |
| Primary Material Application | Titanium, Nickel |
| Chip-Breaker Style | Double Sided |
| Manufacturer Grade | AC5015S |
| Coating Process | PVD |
| Material | Carbide |
| Package Quantity | 1 |
