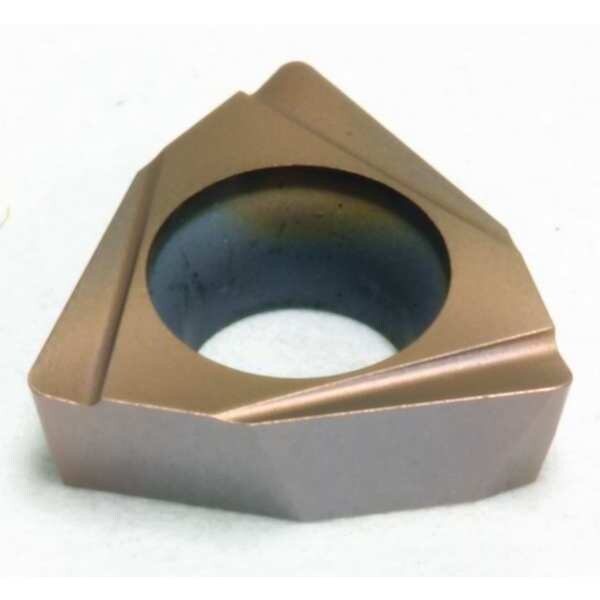

Turning Insert, Trigon, 5, WBGT, 1, Cermet
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WBGT |
| Inscribed Circle | 5 |
| Insert Size | 521 |
| Chip-Breaker | Yes |
| Grade | T1500Z |
| Corner Radius | 1 |
| Insert Material | Cermet |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | WBGT030104L-W |
| Cast Iron (K) Compatibility | No |
| Mounting Style | Screw-On |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| Insert Thickness | 1/16 in |
| Nose Radius | 0.0156 in |
| No. of Edges | 3 |
| Steel (P) Compatibility | Yes |
| Stainless (M) Compatibility | Yes |
| For Use With | Toolholders, Boring Bars |
| Non Ferrous (N) Compatibility | No |
| ANSI Number | WBGT521L-T1500Z |
| Cutting Direction | Neutral |
| Super Alloy (S) Compatibility | No |
| Hardened (H) Compatibility | No |
| Coating | PVD |
| Mounting Hole Dia. | 0.09 in |
| Primary Material Application | Steel |
| ANSI Code | WBGT521L |
| Included Angle | 80 Degrees |
| Coating Process | PVD |
| Manufacturer Grade | T1500Z |
| Primary Material Application ISO Code | P |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 5 deg |
| Insert Holding Type | Countersink Hole |
| Thickness | 2 |
| Features | Excellent Wear Resistance |
| Cutting Application | Turning |
| Material - Machining | Cermet |
| Shape | Trigon |
| Measurement System | Fractional Inch |
| Material | Cermet |
| Package Quantity | 1 |
