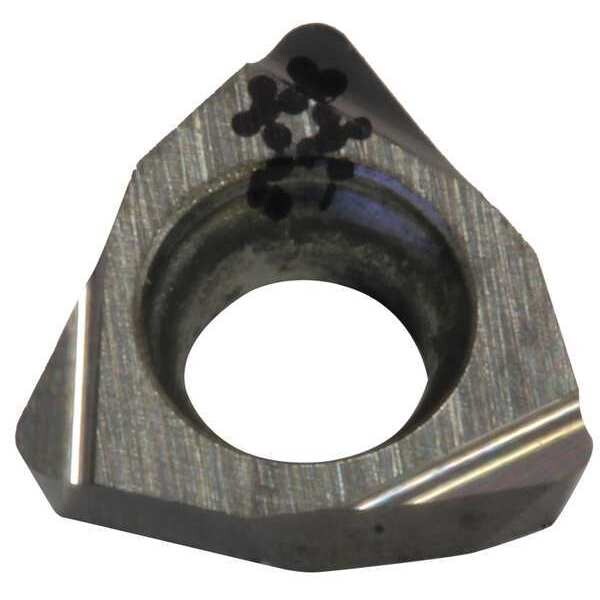

Turning Insert, Trigon, 5, WBGT, 1, Cermet
| Item | Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Insert Style | WBGT |
| Inscribed Circle | 5 |
| Insert Size | 521 |
| Chip-Breaker | Yes |
| Grade | T1500A |
| Corner Radius | 1 |
| Insert Material | Cermet |
| Insert Application | Finishing |
| Rake | 15 deg |
| ISO Number | WBGT060104L-FY |
| Mounting Style | Screw-On |
| Workpiece Compatibility | Stainless (M), Steel (P) |
| No. of Edges | 3 |
| Nose Radius | 0.0156 in |
| Cutting Direction | Neutral |
| Super Alloy (S) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Mounting Hole Dia. | 0.09 in |
| Steel (P) Compatibility | Yes |
| Coating | Uncoated |
| Hardened (H) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Insert Thickness | 1/16 in |
| For Use With | Toolholders, Boring Bars |
| ANSI Number | WBGT521LFY-T1500A |
| Cutting Application | Turning |
| Chip-Breaker Code | FY |
| ANSI Code | WBGT521LFY |
| Included Angle | 80 Degrees |
| Insert Holding Type | Countersink Hole |
| Thickness | 2 |
| Primary Material Application | Stainless Steel, Steel |
| Chip-Breaker Style | On One Side |
| Measurement System | Fractional Inch |
| Features | Fracture Resistant, Wear Resistant |
| Clearance Angle | 5 deg |
| Primary Material Application ISO Code | P, M |
| Through Hole Inside Dia. | 0.09 in |
| Material - Machining | Cermet |
| Shape | Trigon |
| Manufacturer Grade | T1500A |
| Material | Cermet |
| Package Quantity | 1 |
