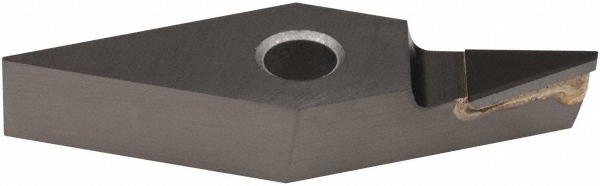

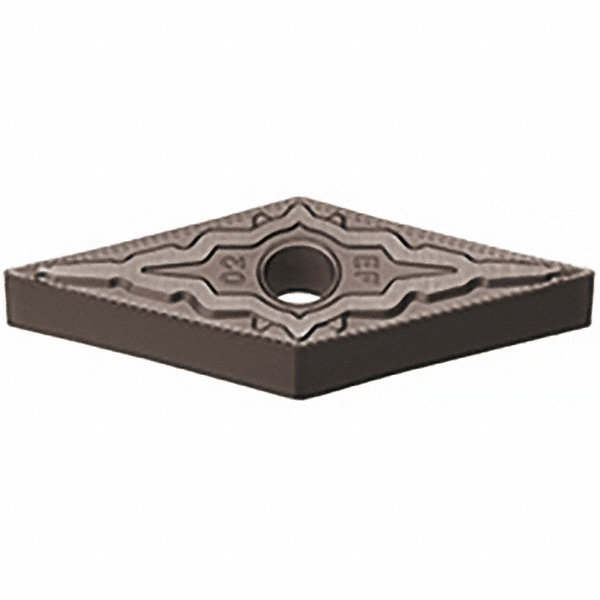

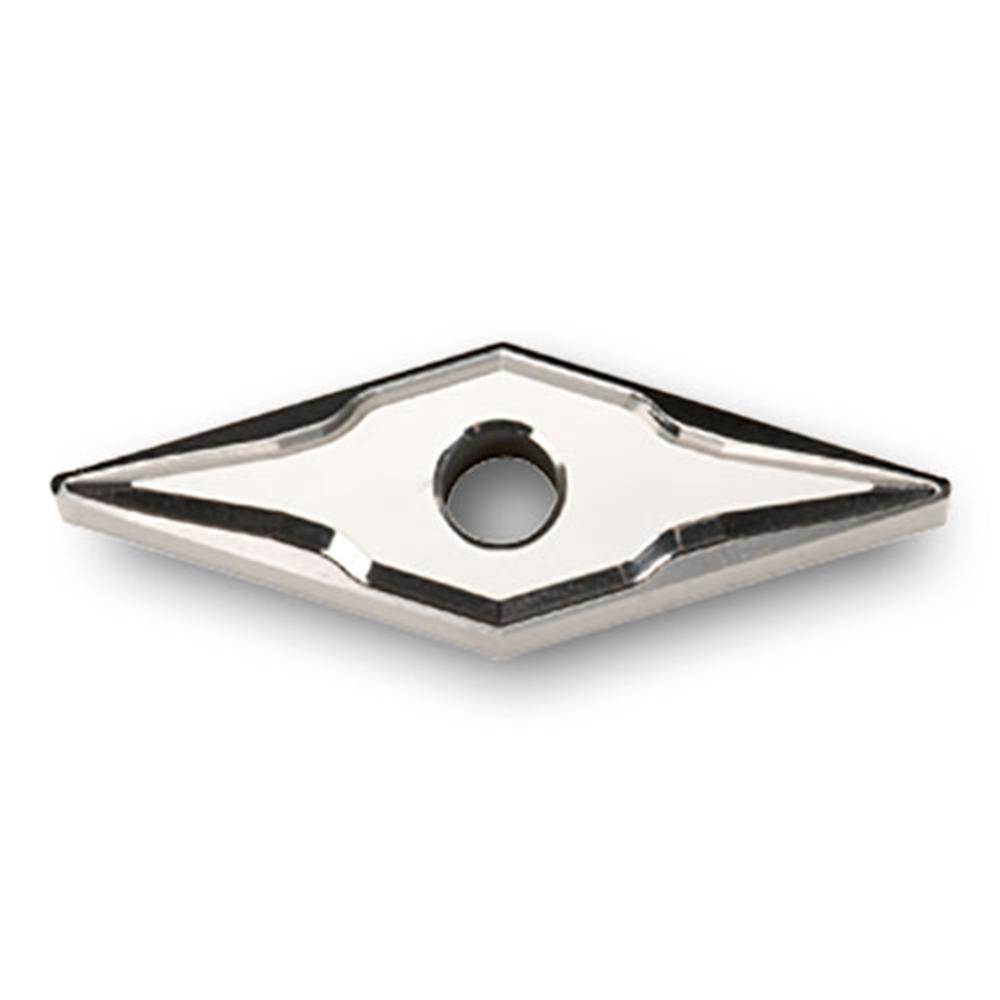

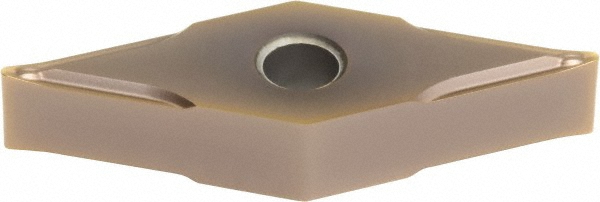

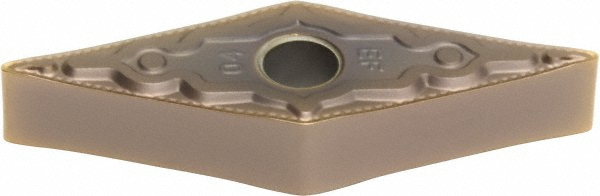

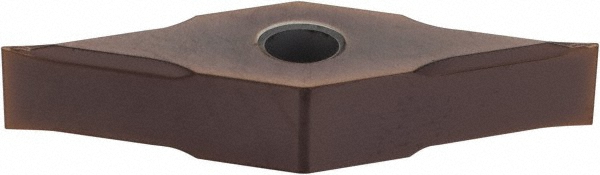

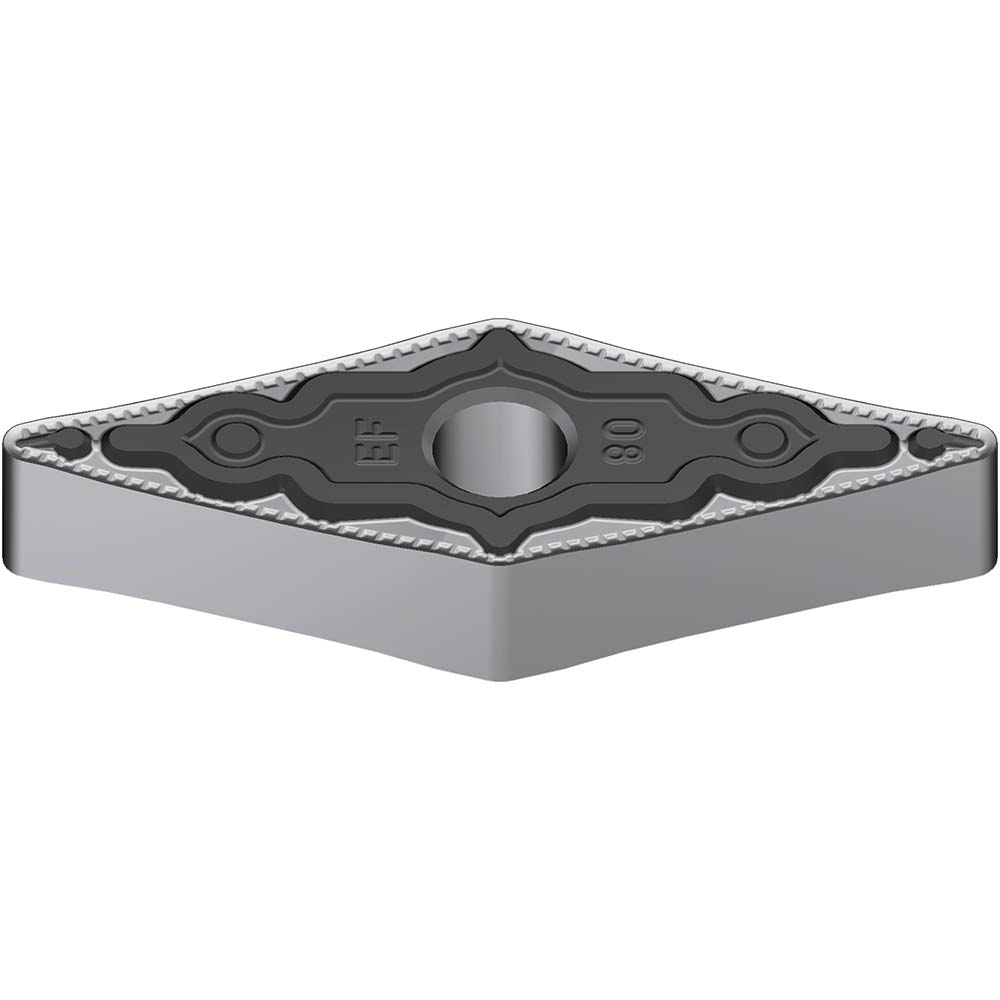

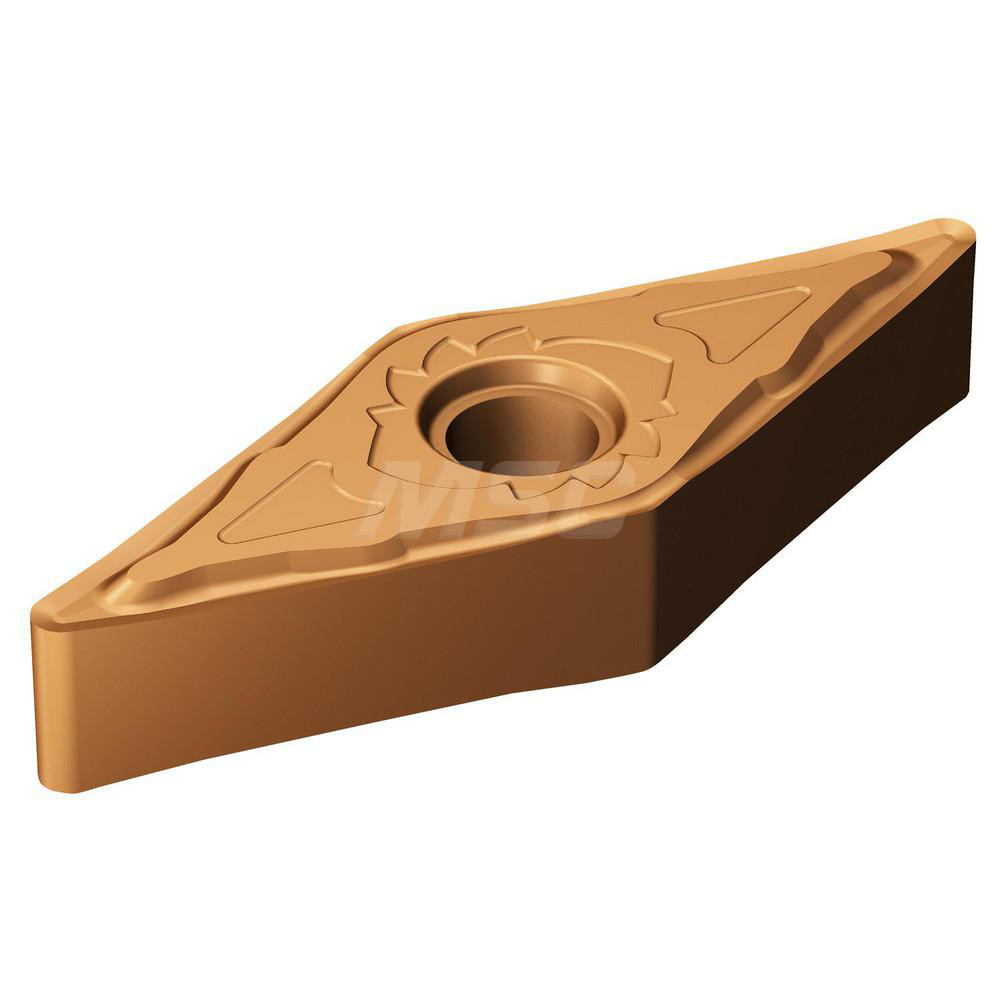

TiAlN & AlCrN Finish, Neutral, 0.6535" Long, 0.3750" Inscribed Circle, 0.0078" Corner Radius, 35 deg V - Diamond (Rhombic) 35-Deg, Series VN
| Insert Style | VNGG |
|---|---|
| ISO Size Code | 160402 |
| ANSI Size Code | 330.5 |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Included Angle | 35 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Insert Material | Carbide |
| Manufacturer Grade | AC520U |
| Coating/Finish | AlCrN; TiAlN |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | VN |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Light Machining; Finishing |
| Side Clearance | Negative |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Insert Code | VNGG160402 |
| ANSI Insert Code | VNGG330.5 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6535 |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Superalloy; Stainless Steel |
| Secondary Workpiece Material Code | S; M |
| Iso Code | VNGG160402N-SU |
| Standards | ISO 13399; ANSI |
| Proprietary Coating Designation | Super ZX |
| Chip Breaker | ESU |
| Rake Angle | 13 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 330.5 |
| Country of Origin | Japan |
| MSC Number | MSC# 32929218 |
