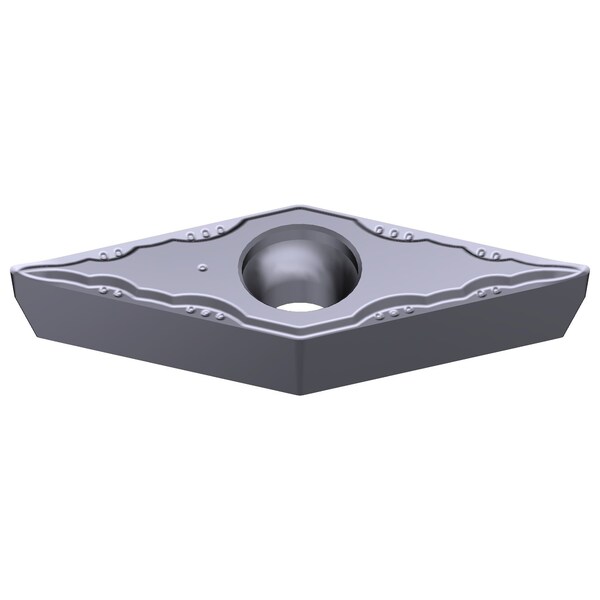

VCGT330 MESI Grade AC5025S Carbide Turning Insert
| Insert Style | VCGT |
|---|---|
| Inscribed Circle | 3/8 in |
| Chip-Breaker | MESI |
| Insert Material | Carbide |
| Insert Application | S10, S15, S20 |
| Rake | Positive |
| Coating | Absotech |
| Insert Thickness | 0.1874 in |
| Nose Radius | 0.0039 in |
| Workpiece Material | Alloy |
| Relief Angle | 7 Degree |
| Mounting Hole Dia. | 4.4 mm |
| Series | AC5000S |
| Tolerance Class | G |
| Cutting Edge Length | 0.6535 in |
| Corner Angle | 35 |
| Insert Holding Method | Screw-On |
| Package Quantity | 1 |
