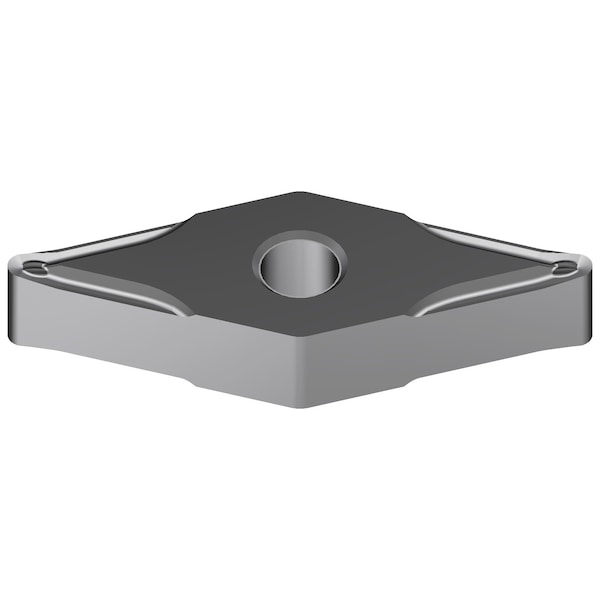

VNMG330.5ESU Grade AC6030M Carbide Turning Insert
| Insert Style | VNMG |
|---|---|
| Inscribed Circle | 3/8 in |
| Chip-Breaker | ESU |
| Insert Material | Carbide |
| Insert Application | M30, M35 |
| Rake | Negative |
| Mounting Hole Dia. | 3.81 mm |
| Workpiece Material | Stainless Steel |
| Relief Angle | 0 Degree |
| Insert Thickness | 0.1874 in |
| Nose Radius | 0.0079 in |
| Coating | Absotech |
| Cutting Edge Length | 0.6535 in |
| Corner Angle | 35 |
| Insert Holding Method | Clamp, Pin |
| Tolerance Class | M |
| Series | AC6000M |
| Package Quantity | 1 |
