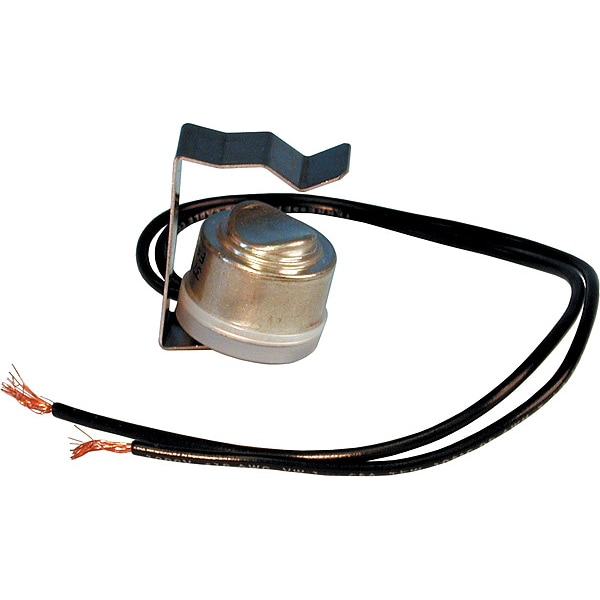

Freeze Protection, 50 deg.-35 deg. F
| Voltage | 120/240V |
|---|---|
| For Use With | Air Conditioning Evaporator Coils |
| Phase | 1, 3 |
| Fits Brand | SUPCO |
| Item | Freeze Protection, 50 Degrees -35 Degrees F |
| Features | Open 35 Degrees F, Close 50 Degrees F, Fit Up to 7/8 in OD Tubing, Rated 10A @ 120V, 5A @ 240V, 12 in Leads |
| Standards | UL; CSA |
| Switch Type | SPST |
| Application | Air Conditioner Compressors |
| Product Type | Heater |
| Lead Length | 12 in |
| For Size - Maximum | 7/8 in |
| Current | 5.8 A |
| Switch Amperage | 5.8 A |
| Contact Rating | 120/240V AC |
| Number of Leads | 2 |
| Switch Open Temperature | 50 deg F |
| Switch Close Temperature | 35 deg F |
| Overall Diameter | 3/4 in |
| Quick Connect Terminals | No |
| Compatible System Type | Commercial and Residential Refrigeration Units; Ice Makers |
| Temperature Differential | 15 |
| Element Type | Bi-Metallic Disc |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
