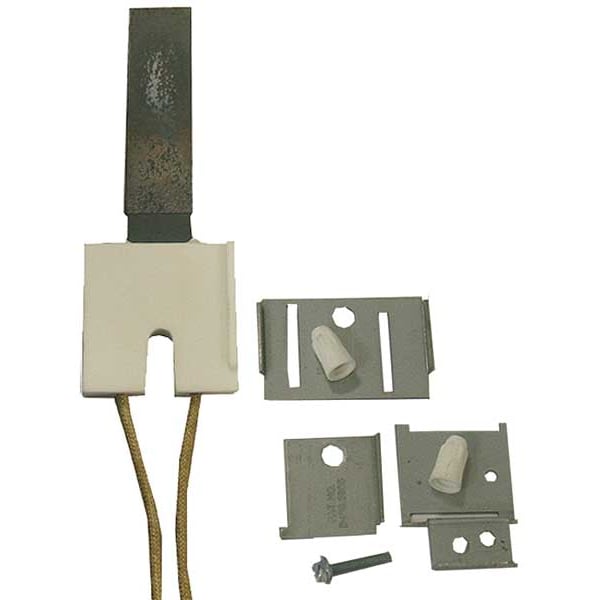

Hot Surface Igniter, LP/NG, 120, 2 5/8 in L., Universal Silicon Nitride, Installation Hardware
| Gas Type | LP, NG |
|---|---|
| Item | Hot Surface Igniter |
| Length (In.) | 2-5/8 |
| Tip Style | Flat |
| Type | Universal Silicon Nitride |
| Voltage | 120 |
| Includes | Installation Hardware |
| Amps | .53A @ 115V AC |
| Package Quantity | 1 |
| Special Information | 18 Gauge Copper High Temperature Fiberglass Insulated Lead Wires |
| For Use With | Furnaces, Boilers, Water Heaters, Unit Heaters, Pool Heaters |
| Temperature Range | 2366 Degrees F |
| Product Type | Hot Surface Igniter |
| Maximum Lead Wire Insulation Temperature | 300 deg F |
| Probe Length | 2-1/4 in |
| For Fuel Type | Natural Gas, LP |
| Input Voltage | 120 V AC |
| Heating Element Material | Silicon Nitride |
| Compatible with Brand | Amana, American Appliance, American Standard, American Water Heater, Arco Aire, Armstrong, Barnett Brass, Carrier, Claire Brothers, Coleman, Detroit Radiant, DMO, Dornback, Ducane, ECR Industries, Enerco Tech, Evcon, EZ Flow, GE, Giant PV, GMO Industries, Goodman, Grimsby Stove, GSW PV, HB Smith, Heil, Hot Point, Hupp Ind, ICP, Integra, Janitrol, John Woods, Johnstone, Keeprite Comfortmaker, LB White Co, Lennox, Majestic, Mars, Metzger, Miller, Mor-Flo, Nordyne, Norton, Olsen, Philco Intertherm, Raypack, Rheem, Roberts Gordon, Robertshaw, Rudd, Snyder General, Starlite, Superior Fireplace, Surface Igniter, Tappan Frigidaire, Temp Controls, Tempstar, Trane, Trianco Heatmaker, Uni-Line, Viessmann, Wayne Home Equipment, Weil McLain, Whirlpool, White LB Co, White Rodgers, Williamson, York |
| Lead Length | 12 in |
| Replacement Type | OEM |
| Overall Length | 2-5/8 in |
| Electrical Connection Type | Hardwired |
| OEM Replacement Part Number | 025-27766-000, 025-27774-000, 025-29043-000, 025-29050-000, 025-30277-000, 025-31801-000, 025-32625-000, 025-32626-000, 025-32638-002, 09050, 1001344, 1009604, 1009980, 101344, 101M, 10399, 105141000, 10735002, 10755002, 1096047, 1096048, 11120-100-1402, 11120-100-1403, 11120-100-1405, 11120-100-1407, 11120-100-1408, 11120-100-1409, 1148145, 1148245, 120-07549, 1380654, 1380672, 1380680, 14740511, 14740512, 20015201, 201, 201A, 201D, 201K, 201L, 201M, 201N, 201P, 201R, 201W, 20834, 2600-359, 26789, 271, 271A, 271B, 271M, 271N, 271NM, 271P, 271R, 271RS, 271W, 29074, 3200618, 3260618, 33J3701, 3400339P01, 36N77, 373-05342-700, 373-09154-700, 383228001, 38322B001, 41-1090, 41-238, 41-242, 41-402, 41-402N, 41-403, 41-403N, 41-404, 41-404N, 41-405, 41-405N, 41-407, 41-407N, 41-408, 41-408N, 41-409, 41-409N, 41-410, 41-410N, 41-412, 41-412N, 473-12509-001, 50018, 511-330-139, 511-330-19099794323, 511-330-193, 526000025, 526000125, 600915, 62-22441-01, 62-22868-82, 62-22868-93, 62374, 62821-001, 62821-002, 632-0880, 632-3811, 661924, 661927, 661928, 67930, 6905032, 71082, 75-92-104, 75-92-105, 767A-301, 767A-303, 767A-306, 767A-309, 767A-350, 767A-352, 767A-353, 767A-354, 767A-356, 767A-364, 767A-365, 767A-366, 767A-370, 767A-371, 767A-372, 86483, 902661, 902694, 903110, 903758, 90434300, 90436600, 9050, 9302-093, 9302-094, 94851, 95-92-105, 96P01, 98P77, 98P78, 99794328, B1172606, B1193939, B12996P01, B138196P01, B1401009, B144676P01, B144676P02, B340039P01, C238, C238-1, C242, FC007, FC011, FC014, FC018, FC020, FC021, FC022, FC023, FC024, FC025, FC027, FC028, FC029, FC030, FC032, FC034, FC035, FC037, FC040, FC041, FC045, FC046, FC048, FC050, FC051, IGN00306905032, IGN21, IGN23, IGN26, IGN28, IGN30, IGN34, L37-698, L37-699, L37-700, L37-812, L37-814, L37-816, LH33ZS001A, LH33ZS002, LH33ZS003, LH33ZS004, WG37X11, WG37X34, ZCO-350 |
| Application | Boilers, Furnaces, Pool Heaters, Unit Heaters, Water Heaters |
| Country of Origin (subject to change) | China |
