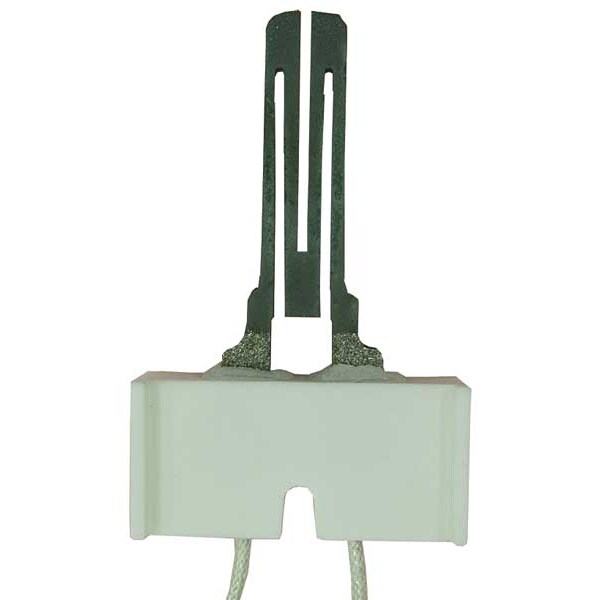

Hot Surface Igniter, LP/NG, 120, 3 1/4 in L., Silicon Carbide, Installation Hardware
| Gas Type | LP, NG |
|---|---|
| Item | Hot Surface Igniter |
| Length (In.) | 3-1/4 |
| Tip Style | Flat |
| Type | Silicon Carbide |
| Voltage | 120 |
| Includes | Installation Hardware |
| Amps | 3.5 - 5A @ 132V AC |
| Package Quantity | 1 |
| Special Information | 18 Gauge Copper High Temperature Fiberglass Insulated Lead Wires |
| For Use With | Furnaces, Boilers, Water Heaters, Unit Heaters, Pool Heaters |
| Product Type | Hot Surface Igniter |
| Maximum Lead Wire Insulation Temperature | 300 deg F |
| Input Voltage | 120 V AC |
| Electrical Connection Type | Hardwired |
| Heating Element Material | Silicon Carbide |
| Probe Length | 2-1/4 in |
| Overall Length | 3-1/4 in |
| Application | Boilers, Furnaces, Pool Heaters, Unit Heaters, Water Heaters |
| Compatible with Brand | Carrier, Ducane, Johnstone, Mars, Norton, Raypack, Roberts Gordon, Robertshaw, Snyder General, Starlite, Surface Igniter, Trane, Weil McLain, White-Rodgers |
| Replacement Type | OEM |
| Lead Length | 24 in |
| OEM Replacement Part Number | 1380654, 1380672, 1380680, 1403, 1407, 1409, 20015201, 201, 271, 41-403, 41-404, 41-407, 41-409, 511-330-139, 511-330-190, 511-330-193, 600915, 67916, 67918, 67920, 767A-356, 767A-357, 767A-361, 767A-365, 767A-370, 90434300, B138196P01, B144676P02, DS403KX, IGN26, IGN30, L45-540, LH33ZS001A, LH33ZS002, LH33ZS003, LH33ZS004 |
| For Fuel Type | Natural Gas, LP |
| Country of Origin (subject to change) | China |
