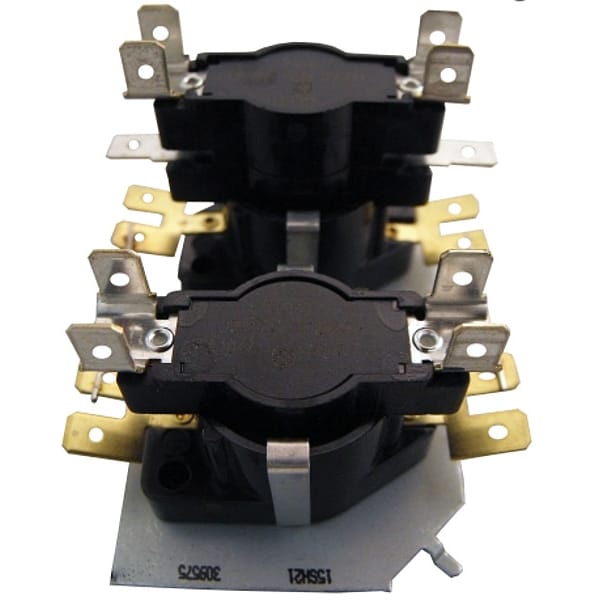

Sequencer, Number of Switches 3, 1-110 Sec
| Width (In.) | 3-1/4 |
|---|---|
| Aux. Switch Off Time (Sec.) | 1 to 110 |
| Resistive Amps @ 120V | 25 A |
| Locked Rotor Amps @ 120V | 72 A |
| Number of Switches | 3 |
| Item | Electric Sequencer |
| Height (In.) | 1-7/8 |
| Locked Rotor Amps @ 480V | 18 A |
| Includes | Double Quick-Connect Terminals For Combination Loads |
| Full Load Amps @ 120VAC | 14 A |
| Pilot Duty 120/480V (VA) | 125 VA |
| Main Switch Off Time (Sec.) | 1 to 110 |
| On Time (Seconds) | 1 to 110 |
| Aux. Switch On Time (Sec.) | 1 to 110 |
| Full Load Amps @ 240VAC | 7 A |
| Locked Rotor Amps @ 240V | 42 A |
| Main Switch On Time (Sec.) | 1 to 110 |
| Type | Strip Heat And/Or Blower Fan In Heat Pumps And Electric Furnaces |
| Off Time (Seconds) | 1 to 110 |
| Full Load Amps @ 480V | 3 A |
| Resistive Amps @ 480V | 12.5 A |
| Control Volts | 24 V |
| Number of Timings | 2 |
| Resistive Amps @ 240V | 25 A |
| Depth (In.) | 2 |
| Therm-o-Disc Model No. | 15SH21309575 |
| Operating Temperature - Maximum | 165 deg F |
| Locked Rotor Current @ 240V AC | 42 A |
| Main Switch Off Minimum | 1 sec |
| Main Switch On Minimum | 1 sec |
| Standards | CSA, Listed, UL |
| Resistive Load Current @ 120V AC | 25 A |
| Main Switch Off Maximum | 110 sec |
| Voltage | 24V AC |
| Resistive Load Current @ 240V AC | 25 A |
| Overall Depth | 2 in |
| Main Switch On Maximum | 110 sec |
| Overall Length | 1-7/8 in |
| Auxiliary Switch Off Minimum | 1 sec |
| Locked Rotor Current @ 120V AC | 72 A |
| Full Load Current @ 240V AC | 7 A |
| Auxiliary Switch On Minimum | 1 sec |
| Operating Temperature - Minimum | -50 deg F |
| Pilot Duty @ 120V AC | 125 VA |
| Auxiliary Switch On Maximum | 110 sec |
| Overall Width | 3-1/4 in |
| Pilot Duty @ 240V AC | 125 VA |
| Full Load Current @ 120V AC | 14 A |
| Application | Electric Furnaces, Gas Furnaces, Heat Pumps, Oil Furnaces |
| Auxiliary Switch Off Maximum | 110 sec |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
