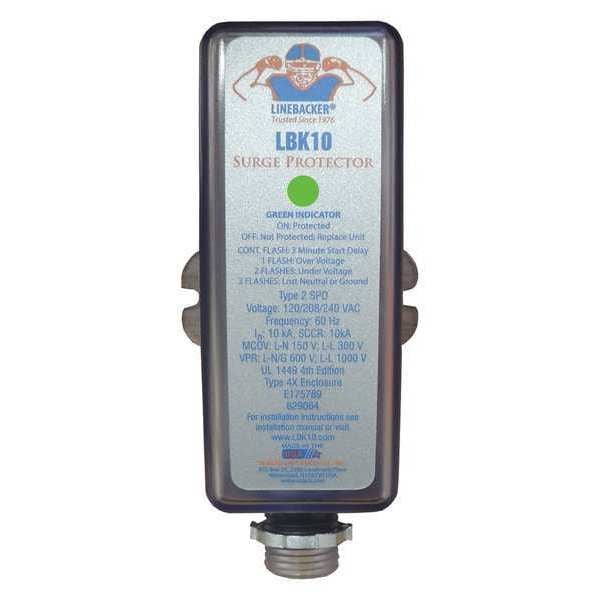

Surge Protection Device, 1 Phase, 120/240V, 2 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Surface |
| Phase | 1 |
| Voltage | 120/240V |
| Number of Poles | 2 |
| Voltage Protection Rating | 600V (L-G, L-N, N-G), 900V (L-L) |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 10 kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 150/300V AC |
| Enclosure NEMA Rating | NEMA 4X |
| IP Rating | IP66 |
| Enclosure Material | Plastic |
| Length | 4 in |
| Depth | 3 in |
| Width | 3 in |
| Wire Gauge | 18 AWG |
| Includes | LED Status Indicator |
| Standards | UL 1449 4th Edition, Type 2 |
| Modular / Nonmodular | Nonmodular |
| Noise Attenuation | 0dB |
| Chase Nipple Size | 1/2 in |
| UL SPD Type | Type 2 |
| Min. Operating Temp. | -40 deg F |
| Color | Clear |
| Max. Operating Temp. | 158 deg F |
| System Connection | Parallel |
| Includes Surge Counter | No |
| Status Indicator | LED Light |
| Package Quantity | 1 |
