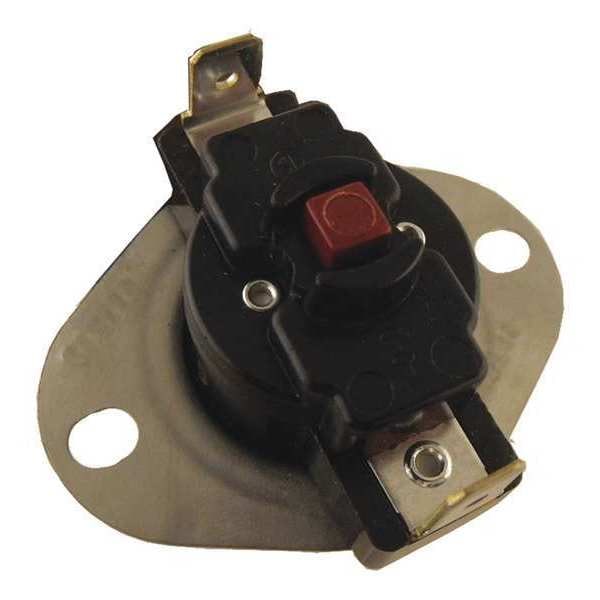

Thermostat, 1-1/2" D, 2" W, 1" H
| Item | Manual Reset |
|---|---|
| Temp. Range (F) | 330 to 350 |
| Type | Limit, Manual Reset |
| Switch Type | SPST |
| Depth (In.) | 1-1/2 |
| Width (In.) | 2 |
| Height (In.) | 1 |
| Switch Opens @ (F) | 350 Degrees F |
| Voltage Range | 120 to 240 |
| Resistive Amps @ 120V | 25 A |
| Resistive Rating 240V | 25 |
| Pilot Duty Contacts (VA) | 125 |
| Element Type | Insertion |
| Circuit No. 1-Inductive 120V | 14 |
| Fan On Temp. (F) | 350 Degrees F |
| Switch Action | Open on Rise |
| Circuit #1 Switch Opens @ (F) | 350 Degrees F |
| Inductive Amps @ 240V | 10 A |
| Resistive Rating Circuit #1 @120/240V | 25 |
| Inductive Amps @ 120V | 14 A |
| Circuit No. 1-Inductive 240V | 10 |
| Resistive Amps @ 240V AC | 25 A |
| Reset Type | Manual Reset |
| Overall Depth | 1-1/2 in |
| Mounting Base Width | 1-5/8 in |
| Maximum Control Temperature | 350 deg F |
| Contact Form | SPST |
| Overall Width | 2 in |
| Product Type | Thermostat |
| Series | SHM |
| Switch Closing Temperature | Not Applicable |
| Mounting | Surface Mount |
| Input Voltage | 120V AC, 240V AC |
| Switch Opening Temperature | 350 deg F |
| Standards | CSA Certified, UL Listed |
| Minimum Control Temperature | 330 deg F |
| Mounting Base Length | 2 in |
| Resistive Amps @ 120V AC | 25 A |
| Application | Limit Control |
| Overall Height | 1 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
